Energy metering
View voltage, current and active power, plus daily, monthly and total consumption.
GEYER SMART · ER160WMX · 2-IN-1
Single-phase consumption.Protected and visible.
A 2-in-1 smart device combining a single-phase Wi-Fi energy meter and voltage monitor, with local LCD, remote control, consumption history and configurable overvoltage, undervoltage and overcurrent limits, with a maximum measuring current of 60 A.
2-in-1Energy meter · Voltage monitor
60 ASingle-phase
2 positions35 mm DIN rail
Energy meteringLive & historical data
Voltage monitoringConfigurable limits
CONNECTED ECOSYSTEM
Amazon Alexa
Google Home
Tuya Smart
Smart LifeENERGY · VOLTAGE MONITORING · CONTROL
Measurement and supervision in one device.
ER160WMX provides energy data and electrical supervision locally on its LCD and remotely through the GEYER Smart app.
02
Voltage monitor
Configure overvoltage, undervoltage and overcurrent thresholds and receive alerts when limits are exceeded.
03
Remote ON/OFF
Switch the connected circuit remotely through GEYER Smart, wherever you are.
04
Schedules & automation
Create up to 30 programs per day, with weekly scheduling and automation through the app.
2-IN-1 · ENERGY METER · VOLTAGE MONITOR
Consumption data and voltage supervision, directly from the electrical panel.

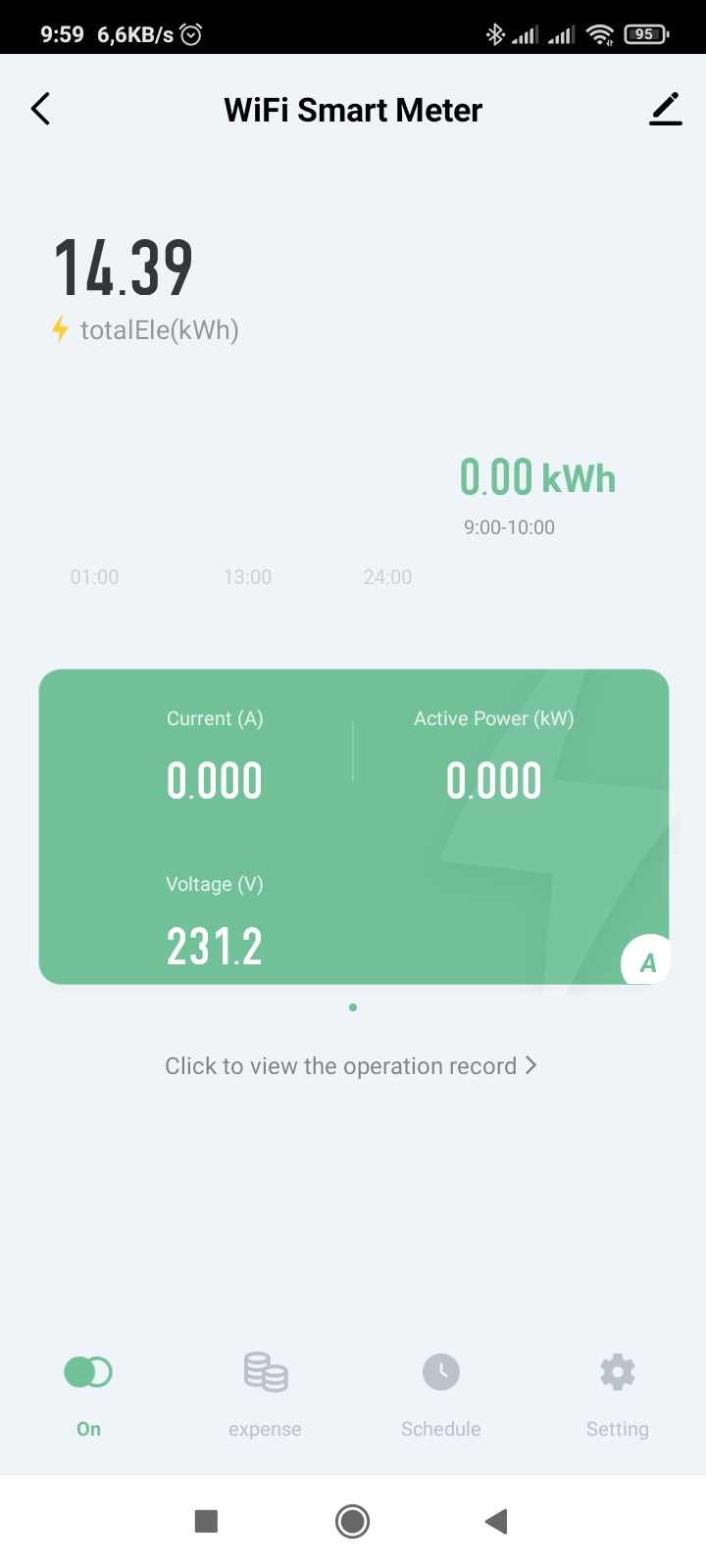

GEYER SMART APP
Live measurements, history and alerts in one place.

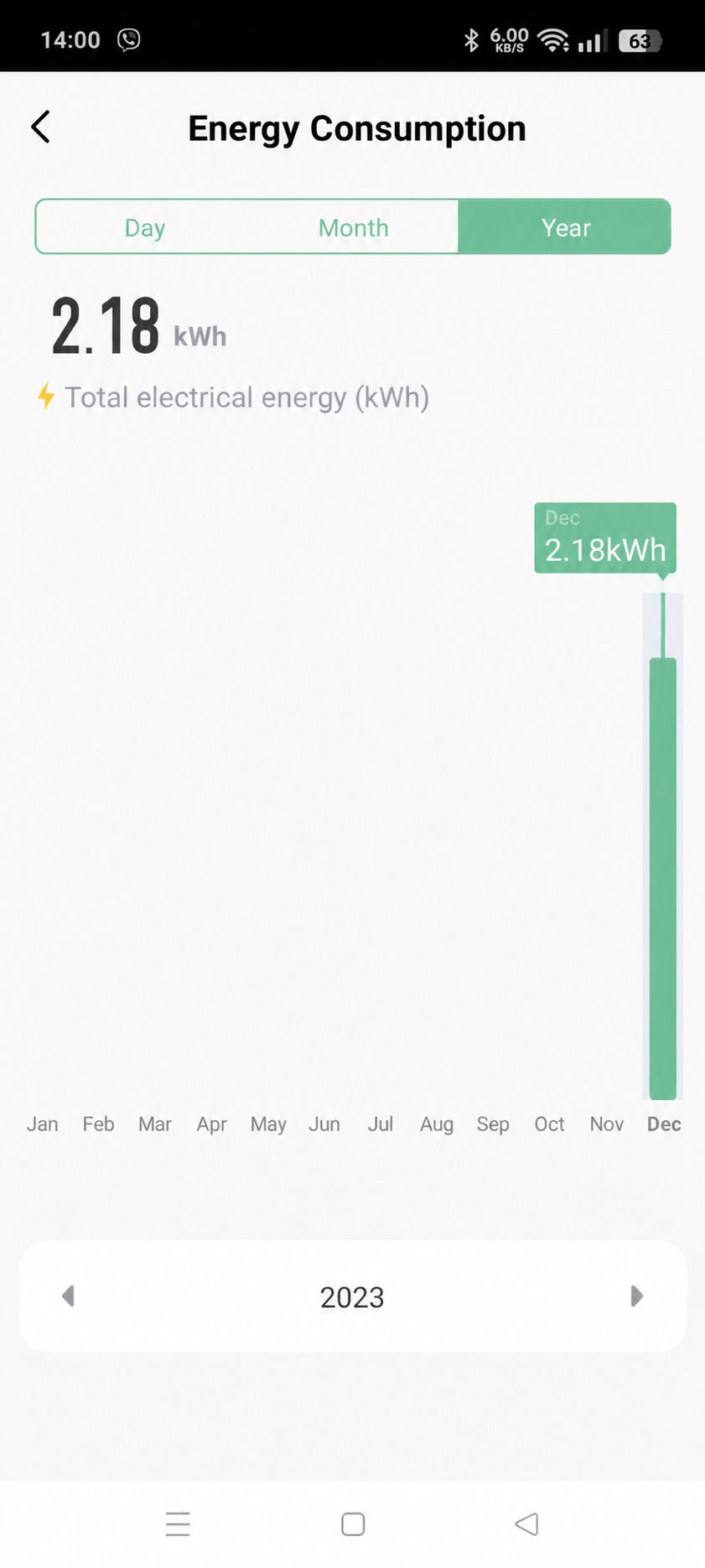

Monitor voltage, current, active power and energy consumption. View daily and monthly data, as well as total energy consumption, control the circuit and receive push notifications for configured electrical limits.
APPLICATIONS
Smart supervision for single-phase installations.
01
HOME
Monitor whole-home or selected-circuit consumption and electrical values remotely.
02
OFFICE
Track energy use and receive voltage or current alerts through the app.
03
HOLIDAY HOME / AIRBNB
Check consumption, circuit status and configured limits while away.
04
SMALL BUSINESS
Monitor energy use and identify periods of increased consumption in a shop or small workspace.
Suitability of the electrical system, required protection and conductor cross-section must be assessed by a qualified electrician, who must perform installation and wiring with the power supply isolated.
TECHNICAL SPECIFICATIONS
Designed for single-phase energy and voltage monitoring.
2-in-1 Wi-Fi energy meter and voltage monitor with local LCD, configurable alerts and mounting on a 35 mm DIN rail.
CEREDRoHS2 years
Input voltage100–240 VAC, 50–60 Hz
Maximum current60 A
Contact1NO (SPST-NO)
Wi-Fi2.4 GHz
BluetoothYes
Mounting35 mm DIN rail, 2 positions
Dimensions82.5 × 36 × 66 mm
Operating temperature−10 °C to +60 °C
Pulse frequency1200 imp/kWh
ProgramsUp to 30 programs per day
Shared usersUp to 20
MeasurementsVoltage, current, active power and daily, monthly and total energy consumption
AlertsOvercurrent · Overvoltage · Undervoltage
NotificationsPush notifications
Warranty2 years
ComplianceCE · RED 2014/53/EU · LVD · EMC · RoHS
INSTALLATION & PAIRING
Three essential steps.
01
Installation
Mount on a 35 mm DIN rail and have the single-phase input and output connected by a qualified electrician with the supply isolated.
02
App
Download GEYER Smart from the App Store or Google Play and connect the phone to a 2.4 GHz Wi-Fi network.
03
Pairing
Press and hold the button for about 10 s until the blue indicator LED flashes rapidly, then add ER160WMX in the app.
!
ELECTRICAL SAFETYSuitability of the electrical system, required protection and conductor cross-section must be assessed by a qualified electrician, who must perform installation and wiring with the power supply isolated.

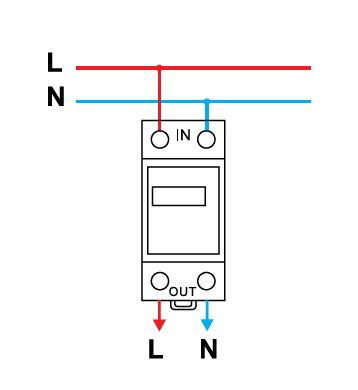

WIRING DIAGRAM
Single-phase input and output.
Connect incoming L and N to the upper input terminals and the corresponding outgoing L and N conductors to the lower output terminals, according to the wiring diagram.
FREQUENTLY ASKED QUESTIONS
The essential answers.
What are the two functions of ER160WMX?+
It combines single-phase energy metering and voltage monitoring in one device.
Does it connect to 5 GHz Wi-Fi?+
No. ER160WMX connects exclusively to a 2.4 GHz Wi-Fi network.
Which values are available in the app?+
The app displays voltage, current, active power and daily, monthly and total energy consumption.
Can electrical limits be configured?+
Yes. Overcurrent, overvoltage and undervoltage thresholds can be configured, with corresponding notifications.
Can the circuit be controlled remotely?+
Yes. The connected circuit can be switched on or off through GEYER Smart.
Who should install ER160WMX?+
Installation and electrical connection must be performed by a qualified electrician.
