GEYER SMART · GS-LSC-5IN1 · 5-IN-1 LED CONTROL

Every colour.One smart controller.

A five-channel Wi-Fi and RF controller for RGB, RGBW, RGBWC, CCT and single-colour constant-voltage LED strips, with scenes and dimming through GEYER Smart.

Explore the functionsTechnical specifications
5-in-1Five operating modes
12–48 V DCConstant-voltage LED
5 × 2 AMaximum output
GEYER GS-LSC-5IN1 Wi-Fi and RF five-channel LED strip controller
Colour & white lightScenes and dimming
Wi-Fi + RF433 MHz kinetic switches

CONNECTED ECOSYSTEM

Amazon AlexaGoogle HomeTuya SmartSmart Life

COLOUR · WHITE TONE · SCENES

One controller for almost every LED-strip concept.

Select the matching mode for RGB, colour-temperature or multi-channel installations and manage the result from the app or a paired RF kinetic switch.

5×01

Five operating modes

Select RGB, RGBW, RGBWC, CCT or single-colour dimming to match the connected constant-voltage LED strip.

PWM02

Five-channel PWM output

Control up to five channels with a maximum of 2 A per channel and 120/240/480 W total at 12/24/48 V DC.

◉03

Wi-Fi scenes & voice control

Adjust colour, CCT colour temperature and brightness in GEYER Smart and use supported Alexa or Google Home voice commands.

RF04

RF kinetic switches

Pair up to 10 GEYER GS-WKS3454 kinetic switches for battery-free local control. Available button functions depend on the selected operating mode and pairing setup. Range: up to 25 m indoors and 80 m in open-field conditions.

FIVE MODES · ONE MODULE

From a single white channel to full RGBWC lighting.

RGB · RGBW · RGBWCCCTSingle-colour LEDWi-Fi + RF 433 MHz

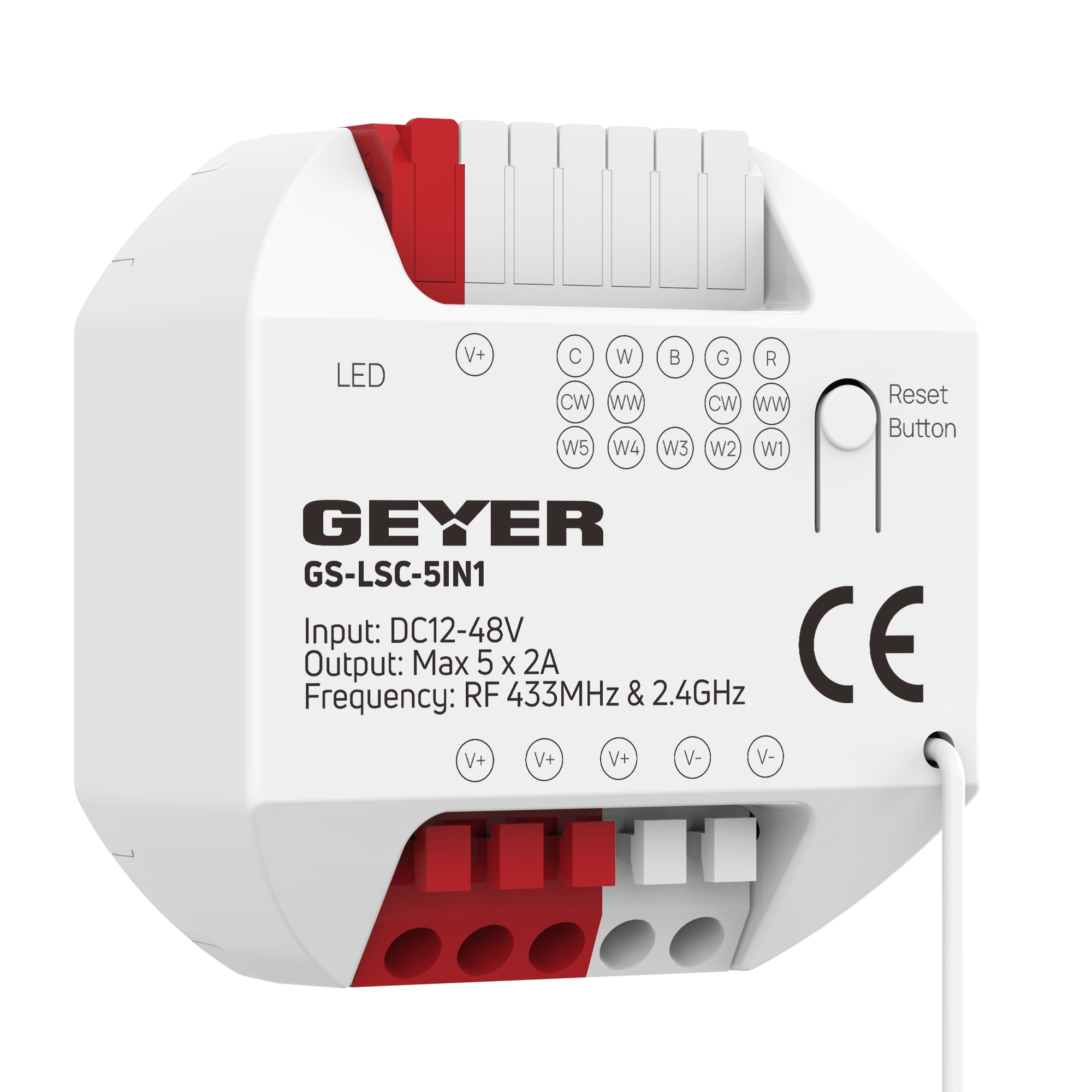

GEYER GS-LSC-5IN1 Wi-Fi and RF five-channel LED strip controller
GEYER Smart app

GEYER SMART APP

Colour, colour temperature and scenes in one place.

Choose the operating mode, set colour or CCT colour temperature, adjust brightness and save lighting scenes from GEYER Smart.

Download on the App StoreGet it on Google Play
GEYER Smart RGBW colour-control screen with colour wheel and brightness controls
RGBW COLOUR CONTROL
GEYER Smart CCT colour-temperature screen with warm-to-cool white control
CCT COLOUR-TEMPERATURE CONTROL
RGBThree-channel colourRGBWColour plus whiteRGBWCColour plus warm/cool whiteCCTTunable whiteDIMSingle-colour channels

APPLICATIONS

Lighting that changes with the space.

01

LIVING ROOM

Create coloured ambient scenes while retaining warm-white everyday lighting.

02

BEDROOM

Use tunable colour temperature for daily routines and softer warm light in the evening.

03

MEDIA & GAMING

Synchronise vivid RGB or RGBW accent lighting with the atmosphere of the room.

04

RESTAURANTS & HOSPITALITY SPACES

Save repeatable scenes for service, events, cleaning and closing time.

Use only compatible constant-voltage 12–48 V DC LED strips or fixtures. The power-supply voltage must match the rated voltage of the LED strip. Keep every channel at or below 2 A and the combined load within 120 W at 12 V DC, 240 W at 24 V DC or 480 W at 48 V DC. Select a power supply with adequate power reserve. The DC circuit must be connected by a suitably trained installer and the 100–240 V AC supply side by a licensed electrician.

TECHNICAL SPECIFICATIONS

Five-channel PWM control with Wi-Fi and RF.

GS-LSC-5IN1 supports five LED-strip configurations and the GEYER GS-WKS3454 433 MHz kinetic switch.

CEREDRoHS2-year warranty
Product modelGS-LSC-5IN1
Operating modesRGB · RGBW · RGBWC · CCT · single-colour dimming
Input12–48 V DC
OutputConstant-voltage PWM dimming
Output channels5
Maximum output current5 × 2 A
Maximum output load120 W at 12 V DC · 240 W at 24 V DC · 480 W at 48 V DC
RF data rate100 kbit/s
Compatible kinetic switchGEYER GS-WKS3454
Paired kinetic switchesUp to 10
RF rangeUp to 80 m in open-field conditions · 25 m indoors
WirelessRF 433 MHz · Wi-Fi 2.4 GHz
RF repeater/bridge modeSupported
Control methodGEYER Smart app · supported voice commands · GEYER GS-WKS3454
Power-supply selectionMatch the LED-strip voltage · maximum 2 A per channel · adequate power reserve
Dimensions52 × 52 × 23 mm
Operating temperature−20 °C to +55 °C
Default modeRGBWC
Warranty2 years
ComplianceCE · RED · RoHS

INSTALLATION & PAIRING

Three essential steps.

01

Installation

With power isolated, have a suitably trained installer connect a matching 12–48 V DC supply and LED strip to the terminals for the selected mode.

02

App

Download GEYER Smart and connect the phone to a 2.4 GHz Wi-Fi network.

03

Pairing

Press and hold the pairing button for 10 seconds to enter Wi-Fi setup. To pair a GEYER GS-WKS3454 RF kinetic switch, hold the module button for 3 seconds and then press the selected switch button according to the required pairing setup.

!

12–48 V DC POWER-SUPPLY INSTALLATIONUse a certified SELV constant-voltage power supply whose voltage matches the LED strip. Keep each channel within 2 A, the combined load within the specified limit and allow adequate power reserve. Verify polarity and channel assignment before energising. The 100–240 V AC side must be connected by a licensed electrician.

WIRING & DIMENSIONS

Five terminal configurations for five operating modes.

Connect V+ and V− to the matching DC power supply and connect the LED-strip channels to R, G, B, W/CW and C/WW according to the selected operating mode. Double-press the pairing button to cycle through modes; RGBWC is the factory default.

GS-LSC-5IN1 dimming and CCT wiring diagrams
DIM · CCT
GS-LSC-5IN1 RGB and RGBW wiring diagrams
RGB · RGBW
GS-LSC-5IN1 RGBWC wiring diagram
RGBWC

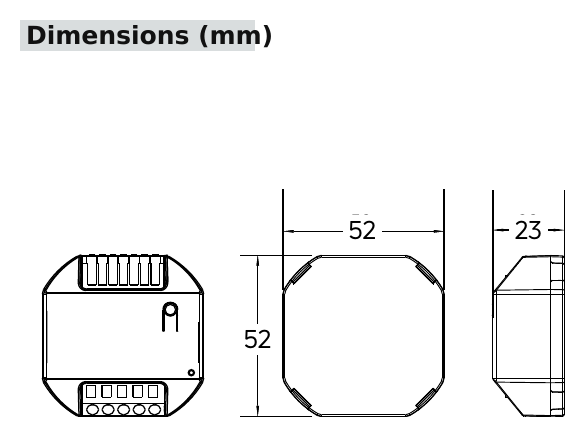

GS-LSC-5IN1 product dimensions
52 × 52 × 23 mm

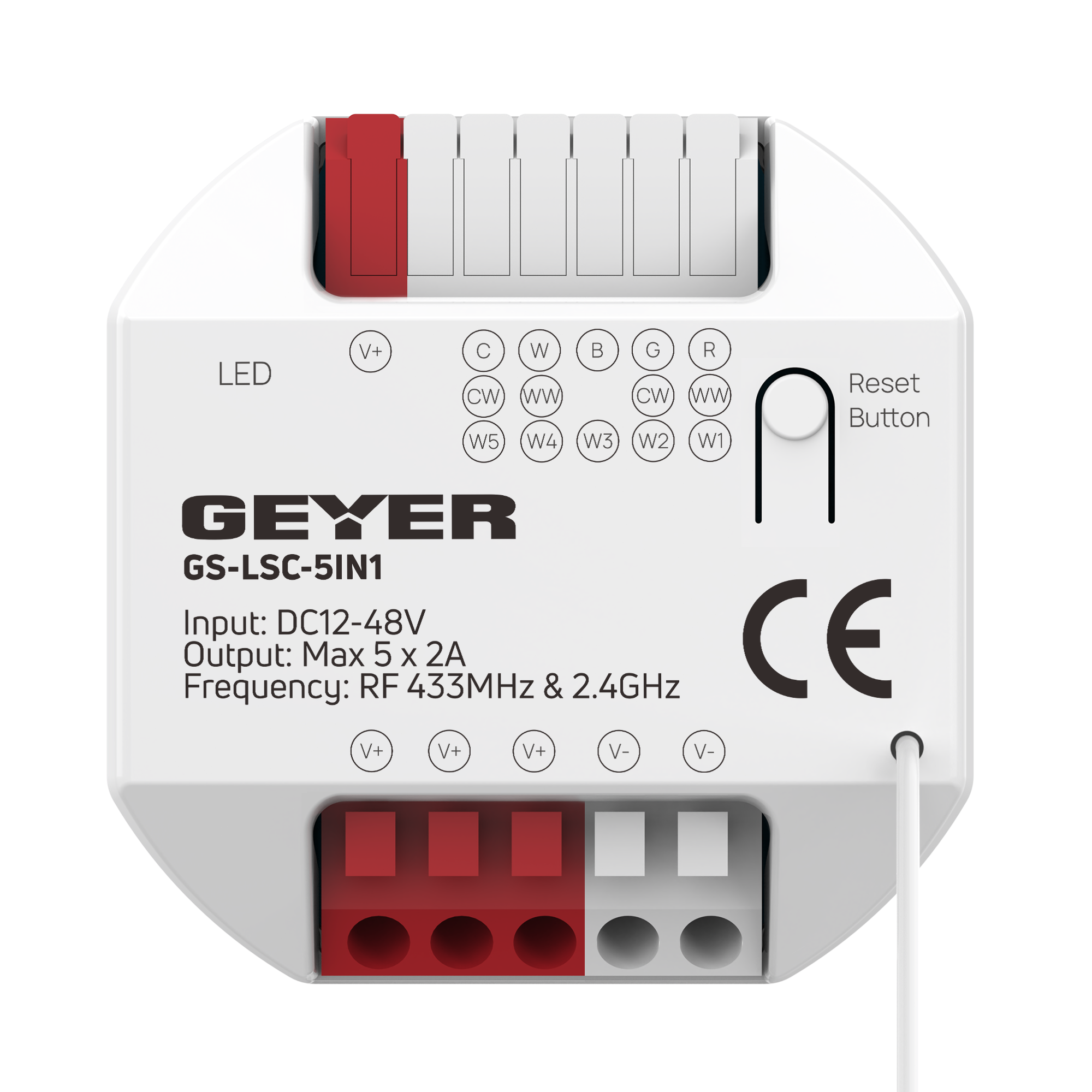

GEYER GS-LSC-5IN1 Wi-Fi and RF five-channel LED strip controller
Front product view

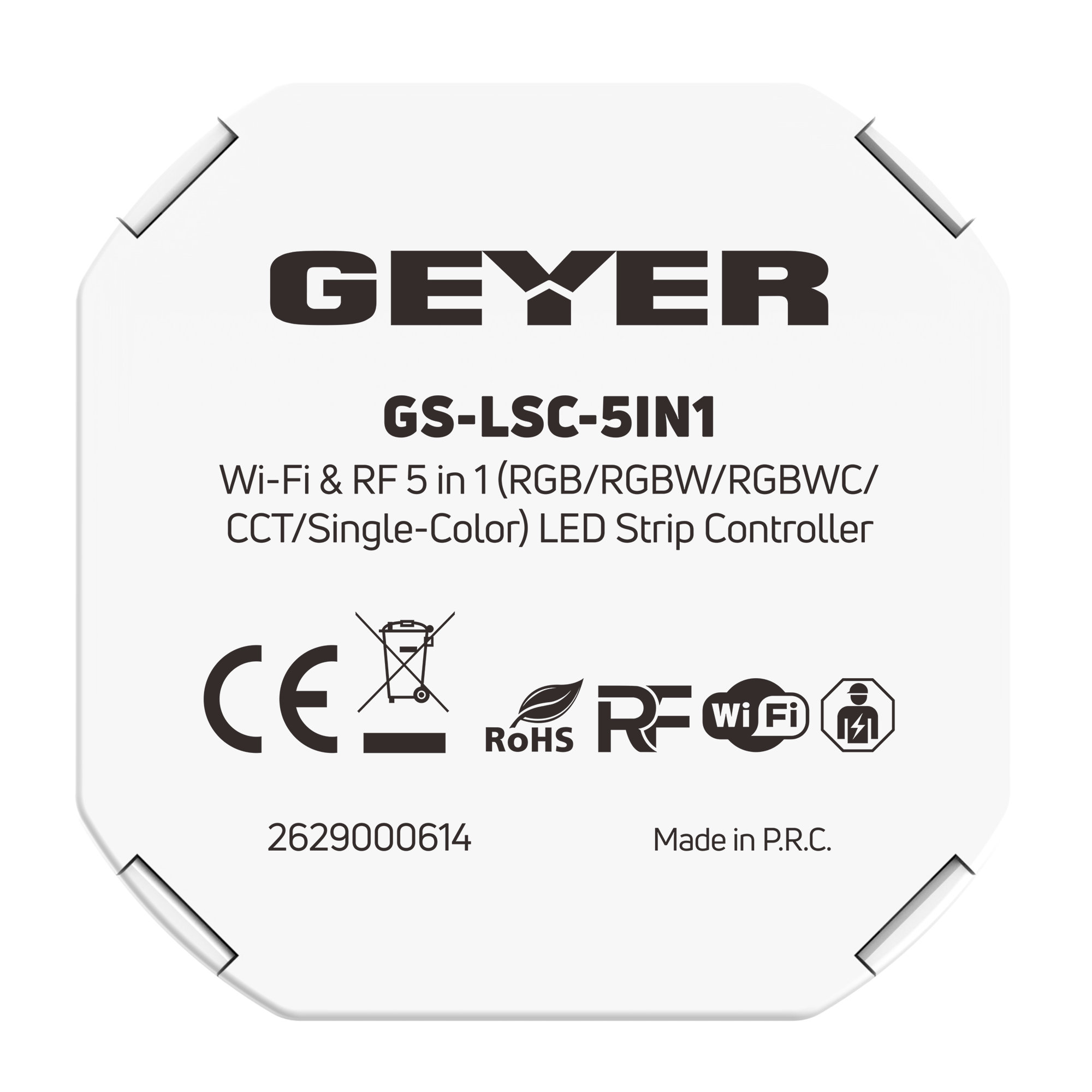

Rear view of the GEYER GS-LSC-5IN1 controller
Rear identification label

FREQUENTLY ASKED QUESTIONS

The essential answers.

Which LED strips are compatible?+

Compatible constant-voltage 12–48 V DC RGB, RGBW, RGBWC, CCT and single-colour LED strips are supported.

How do I change operating mode?+

Double-press the pairing button to cycle through the five modes. The indicator flashes once for dimming, twice for CCT, three times for RGB, four times for RGBW and five times for RGBWC.

What is the maximum load?+

Up to 2 A on each of five channels, with a total maximum of 120 W at 12 V, 240 W at 24 V or 480 W at 48 V DC.

Which RF kinetic switch is compatible?+

The compatible GEYER model is GS-WKS3454. Available button functions depend on the selected operating mode and pairing setup.

Does it connect to 5 GHz Wi-Fi?+

No. It connects to a 2.4 GHz Wi-Fi network.

Can it extend an RF signal?+

Yes. RF repeater/bridge mode can retransmit a paired kinetic-switch signal to extend communication distance.
