01
Five lighting modes
Select RGB, RGBW, RGBWC, CCT or single-colour dimming for a compatible constant-voltage LED strip.
GEYER SMART · KIT-LEDSTRIPS · 5-IN-1 LED CONTROL KIT
Smart LED lighting.Wireless control included.
Includes the GS-LSC-5IN1 controller and GS-WKS3454 kinetic switch. Power supply and LED strip are not included.
2 devicesController + kinetic switch
5-in-1RGB · RGBW · RGBWC · CCT · DIM
No batterySelf-powered wall control
App, voice & RFFlexible smart-lighting control
Controller and wireless-switch kitGS-LSC-5IN1 + GS-WKS3454
CONNECTED ECOSYSTEM
Amazon Alexa
Google Home
Tuya Smart
Smart LifeWI-FI · RF · KINETIC CONTROL
Controller and wireless-switch kit.
The GS-LSC-5IN1 manages colour, colour temperature and brightness, while the included GS-WKS3454 adds battery-free wall control. The power supply and LED strip are sold separately.
02
Defined kit contents
Includes the GS-LSC-5IN1 controller and GS-WKS3454 kinetic switch. Power supply and LED strip are not included.
03
App, scenes & voice
Use GEYER Smart for colour, colour temperature, brightness and scenes, plus supported Alexa and Google Home commands.
04
Wi-Fi and RF together
The controller connects through Wi-Fi 2.4 GHz and receives local commands from the included RF 433 MHz kinetic switch.
TWO DEVICES · ONE CONTROL KIT
Smart LED control from the app and from the wall, without a battery in the switch.

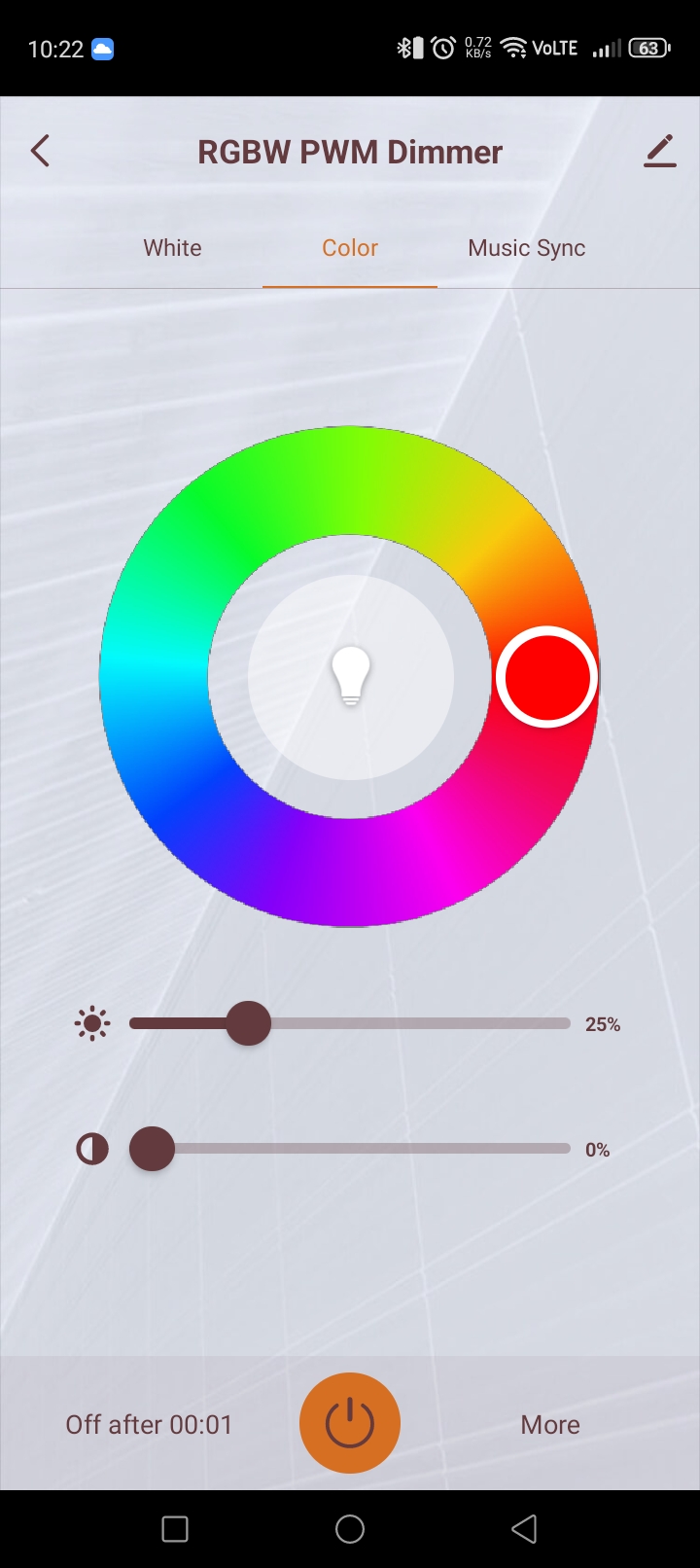

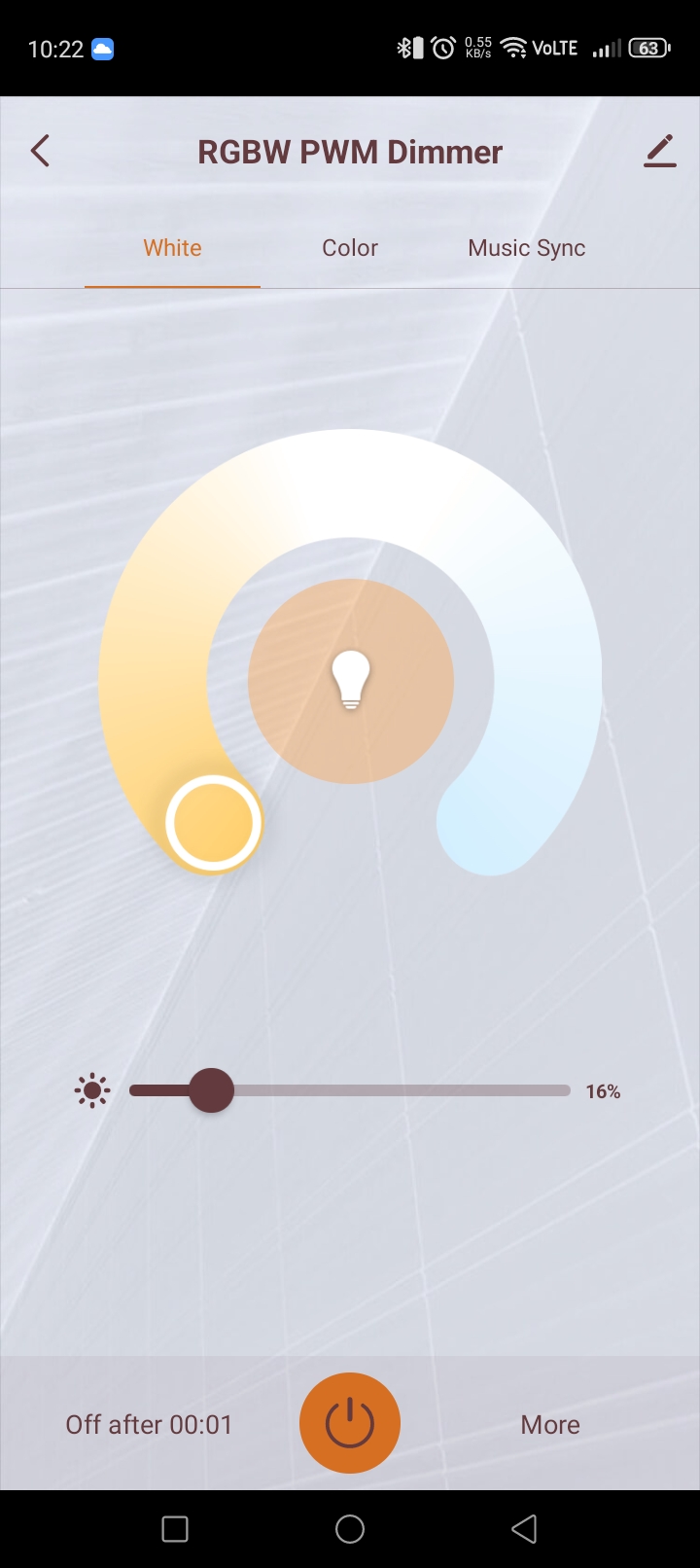

GEYER SMART APP
Colour, colour temperature, scenes and local wireless control.
Set the controller mode, adjust colour or colour temperature and save scenes in GEYER Smart. Use the included kinetic switch for immediate local control.
RGBThree-channel colourRGBWColour plus whiteRGBWCColour plus warm/cool whiteCCTTunable whiteDIMSingle-colour channels
APPLICATIONS
One kit for colour and white-light spaces.
01
LIVING ROOM
Combine RGB ambience and everyday white light, with app scenes and a battery-free wall control.
02
BEDROOM
Adjust tunable white and brightness while keeping immediate local control beside the bed.
03
MEDIA & GAMING
Create vivid RGB/RGBW accent lighting and change scenes through the app or paired switch.
04
HOSPITALITY
Save repeatable lighting scenes and add a convenient wireless control point without new switch wiring.
Includes the GS-LSC-5IN1 controller and GS-WKS3454 kinetic switch. Power supply and LED strip are not included. Select a constant-voltage power supply that matches the LED strip's rated voltage and provides adequate output power with a suitable safety margin.
TECHNICAL SPECIFICATIONS
Controller and wireless-switch kit.
Five-channel PWM LED control with Wi-Fi, RF and a self-powered four-button wall switch.
CEREDRoHS2-year warranty
Kit codeKIT-LEDSTRIPS
Kit contentsGS-LSC-5IN1 controller · GS-WKS3454 kinetic switch
Not includedPower supply · LED strip
Controller modesRGB · RGBW · RGBWC · CCT · single-colour dimming
Controller input12–48 V DC
Controller outputConstant-voltage PWM dimming
Maximum output current5 × 2 A · 10 A total
Maximum output load120 W at 12 V DC · 240 W at 24 V DC · 480 W at 48 V DC
Power-supply selectionSame rated voltage as the LED strip · adequate power with safety margin
WirelessWi-Fi 2.4 GHz · RF 433 MHz
Paired kinetic switchesUp to 10 per controller
RF rangeUp to 80 m in open-field conditions · up to 25 m indoors
Controller dimensions52 × 52 × 23 mm
Switch dimensions86 × 86 × 17 mm
Switch buttons4 · two independent groups
Switch supplySelf-powered · no battery
Controller ingress protectionIP20
Switch ingress protectionIP20
Operating temperatureBoth devices: −20 °C to +55 °C
Default controller modeRGBWC
Controller complianceCE · RED · RoHS
Switch complianceCE · RED · RoHS
INSTALLATION & PAIRING
Controller wiring. Wireless switch placement.
01
Controller installation
With all power isolated, connect a compatible LED strip and a 12–48 V DC power supply whose rated voltage matches the strip. Observe polarity, channel allocation and the total permitted current.
02
App connection
Press and hold the controller pairing button for 10 seconds, then add it in GEYER Smart over a 2.4 GHz Wi-Fi network.
03
Switch pairing
Press and hold the controller pairing button for about 3 seconds. When the indicator LED flashes, press the selected button on the GS-WKS3454 four times.
!
AC AND DC INSTALLATION SAFETYThe 100–240 V AC side of the power supply must be installed by a licensed electrician. Wire the controller and LED strip only while de-energised. Verify polarity, voltage, channel allocation and total permitted current before energising. The kinetic switch must never be connected to mains voltage.

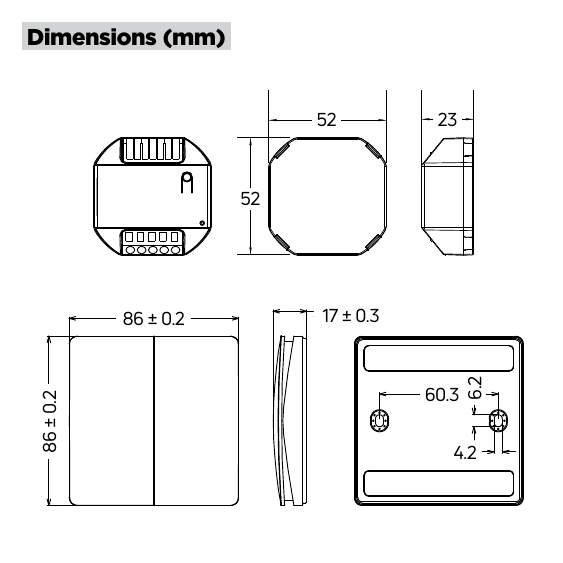

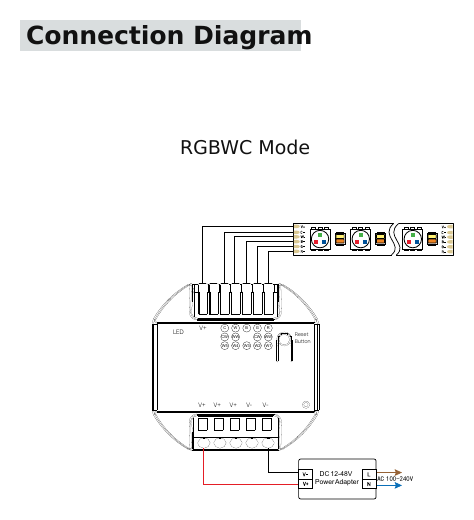

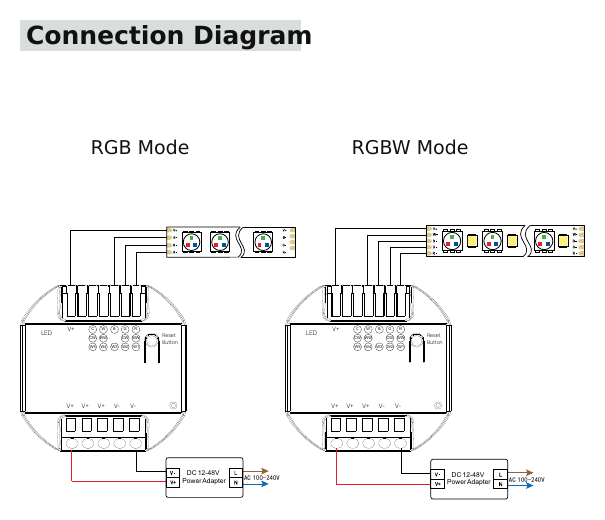

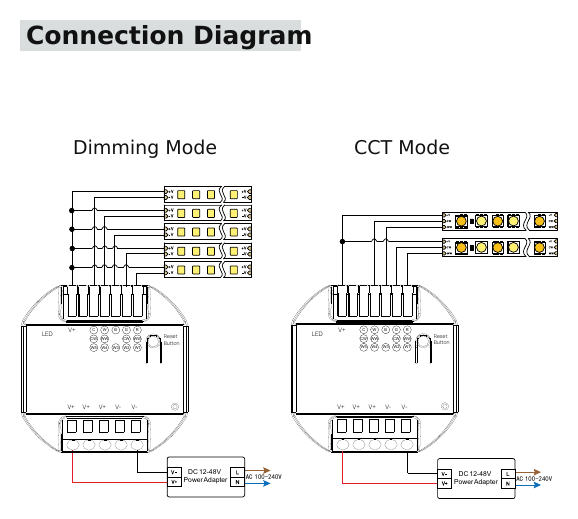

WIRING & DIMENSIONS
Three LED wiring configurations. Dimensions of both devices.
Use the diagram for the selected DIM/CCT, RGB/RGBW or RGBWC mode. The four frames below have equal dimensions for clear comparison.
FREQUENTLY ASKED QUESTIONS
The essential answers.
What is included in KIT-LEDSTRIPS?+
The kit includes one GS-LSC-5IN1 controller and one GS-WKS3454 kinetic switch.
Are the power supply and LED strip included?+
No. The power supply and LED strip are sold separately. The power supply must match the strip's rated voltage and provide adequate power with a suitable safety margin.
Which LED strips are compatible?+
Compatible 12–48 V DC constant-voltage RGB, RGBW, RGBWC, CCT and single-colour LED strips or fixtures.
Does the wireless switch need wiring or batteries?+
No. It is self-powered by each press and communicates with the controller over RF 433 MHz.
How is the four-button switch paired?+
Enter RF pairing on the controller, then press the selected switch button four times.
Can I add more kinetic switches?+
Yes. The controller can store up to 10 compatible wireless kinetic switches.
Does it connect to 5 GHz Wi-Fi?+
No. The controller connects to Wi-Fi 2.4 GHz.
