01
Three independent outputs
Control three compatible circuits separately from the app or the built-in buttons.
GEYER SMART · ER316W
Three outputs.One smart connection.
Smart three-channel Wi-Fi relay for independent or simultaneous control, schedules and local operation from the electrical panel.
3 outputs16 A per output at cosφ = 1
Wi-Fi2.4 GHz
2 moduleson DIN rail
3-channel controlGEYER Smart
DIN 35 mm2-module width
CONNECTED ECOSYSTEM
Amazon Alexa
Google Home
Tuya Smart
Smart LifeTHREE OUTPUTS · SCHEDULES · LOCAL CONTROL
Three circuits. One connected relay.
Control each output independently or use All ON / All OFF through GEYER Smart.
02
Up to 30 schedules in total
Create up to 30 daily or weekly ON/OFF programs in total for the controlled outputs.
03
Flexible timers
Countdown, cyclic operation, random activation and automatic switch-off.
04
Local and external control
Three built-in buttons and three external dry-contact control inputs.
THREE CHANNELS · TWO DIN MODULES
More circuits under control. Less space in the panel.

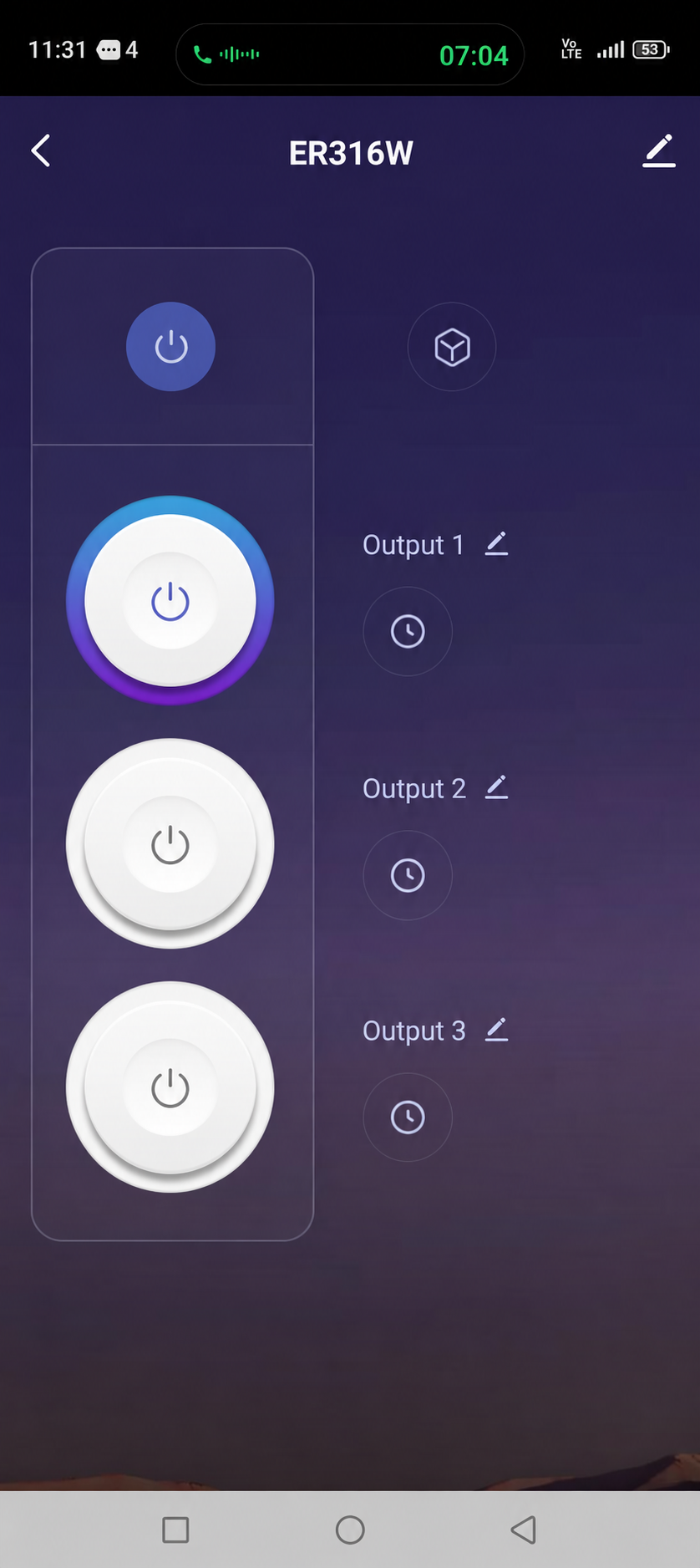

GEYER SMART APP
Three outputs in one familiar environment.
Rename each output, control channels independently, use All ON / All OFF, set timers, choose power-restore behaviour and share the device with up to 20 users.
APPLICATIONS
Coordinated control for multiple circuits.
01
LIGHTING ZONES
Independent control and scheduling of three compatible lighting circuits.
02
EXTERIOR LIGHTING
Control facade, garden and terrace lighting independently from one device.
03
PANEL CIRCUITS
Manage three selected circuits from the electrical panel.
04
SCHEDULED OPERATION
Automate recurring ON/OFF routines for each output.
Each output is rated at 16 A at 250 VAC for cosφ = 1. Load suitability and simultaneous operation must be assessed by the installer.
TECHNICAL SPECIFICATIONS
Three-channel control for the electrical panel.
Two-module DIN-rail relay with three normally open outputs and dedicated local controls.
CEREDRoHS2-year warranty
Input voltage100–240 VAC
Frequency50–60 Hz
Outputs3 normally open contacts
Rated current16 A per output at 250 VAC, cosφ = 1
Wi-Fi2.4 GHz
Mounting35 mm DIN rail, 2 DIN modules
Dimensions65.5 × 36 × 90 mm
Operating temperature−10 °C to +60 °C
ProgramsUp to 30 programs in total per day or week
SharingUp to 20 users
HistoryOperation history
NotificationsPush notifications
Warranty2-year warranty
ComplianceCE, RoHS · DoC: LVD / EMC / RED
INSTALLATION & PAIRING
Three essential steps.
01
Installation
Mount on a 35 mm DIN rail and complete the electrical connection through a qualified electrician.
02
App
Install GEYER Smart and connect the phone to a 2.4 GHz Wi-Fi network.
03
Pairing
Press and hold the S1 button for about 5 seconds until the Wi-Fi indicator LED starts flashing rapidly, then add ER316W in the app.
!
ELECTRICAL SAFETYInstallation and connection must be performed with the power isolated and in accordance with applicable regulations.

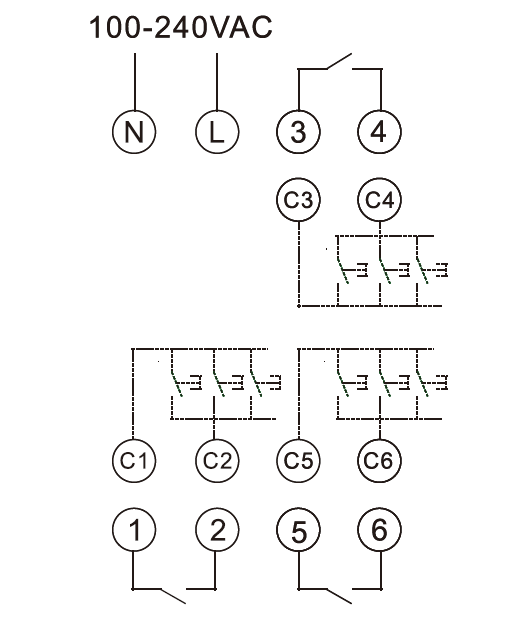

CONNECTION DIAGRAM
Three outputs. Three control inputs.
N and L power the device. Output pairs 1–2, 3–4 and 5–6 correspond to the three channels; control pairs C1–C2, C3–C4 and C5–C6 correspond to their external dry-contact inputs.
FREQUENTLY ASKED QUESTIONS
The essential answers.
How many circuits can ER316W control?+
It has three independent normally open outputs. Each output is rated at 16 A at 250 VAC for cosφ = 1.
Can all outputs be switched together?+
Yes. The app supports All ON and All OFF control.
Does it work with 5 GHz Wi-Fi?+
ER316W connects to 2.4 GHz Wi-Fi.
Can each output have its own schedule?+
Yes. The outputs can be programmed separately, with up to 30 ON/OFF programs in total per day or week.
What happens after a power interruption?+
OFF, ON or restoration of the previous state can be selected in the app.
Who should install the device?+
Installation and electrical connection must be performed by a qualified electrician.
VIDEO
Product videos.
▶
Video content coming soon
TESTIMONIALS
How ER316W works in everyday installations.
Three users describe how independent three-output control simplified their setup.
01“
I use it to control the lighting, water heater and outdoor socket separately. I can now manage everything from my phone without needing three separate relays.
Dimitris · HomeownerThree circuits, one device
02“
At the holiday home, I wanted to switch on the outdoor lights before arriving. With ER316W I control all the exterior lighting from the same app and need fewer devices in the panel.
Anna · Holiday-home ownerRemote exterior-lighting control
03“
I use it for the lighting, water heater and outdoor lighting at my Airbnb. I can control them separately from my phone and schedule their operation.
Konstantinos · Airbnb ownerIndependent control and schedules
