01
Open, stop & close
Control the direction of the motor and stop the shading system at the desired position.
GEYER SMART · GS-SHUTTER · SHADING CONTROL
Your shading.Exactly where you want it.
A smart Wi-Fi module for remote and local control of motorized roller shutters, blinds, awnings and curtains, with position calibration and automations through GEYER Smart.
0–100%Position control
1.7 AMaximum current
18.5 mmSlim design
Precise shading controlOpen · Stop · Close
Behind the wall control39 × 39 × 18.5 mm
CONNECTED ECOSYSTEM
Amazon Alexa
Google Home
Tuya Smart
Smart LifeSHADING · COMFORT · AUTOMATION
Control natural light from anywhere.
GS-SHUTTER combines precise position control, local wall operation and smart schedules for motorized shading systems.
02
Position calibration
Calibrate travel time so the app can display and set the opening percentage from 0% to 100%.
03
Local switch control
Retain local control through compatible traditional rocker switches or momentary push-buttons.
04
Schedules & automations
Create weekly schedules and use sunrise and sunset automations for everyday comfort.

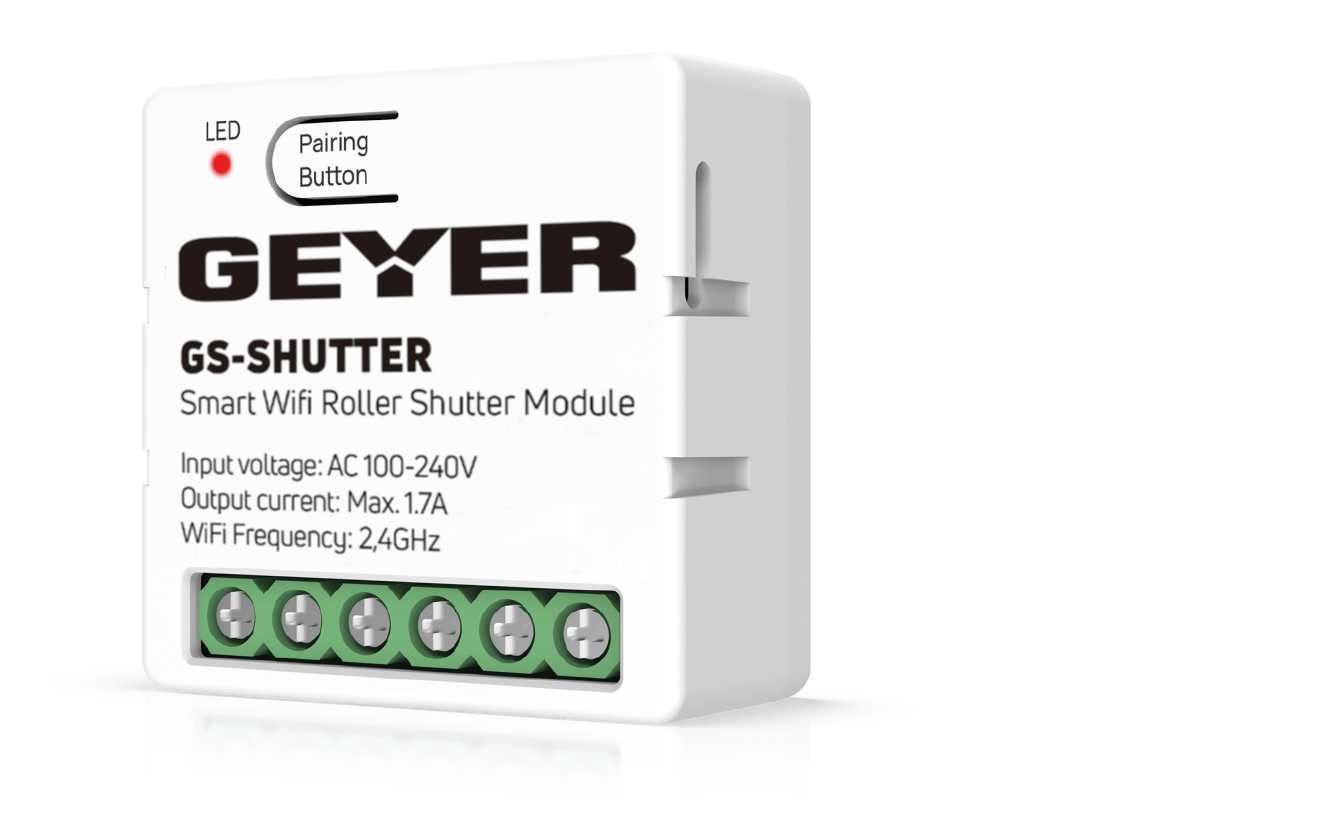

MODULE FOR MOTORIZED SHADING
Smart control designed to fit behind the existing wall switch.

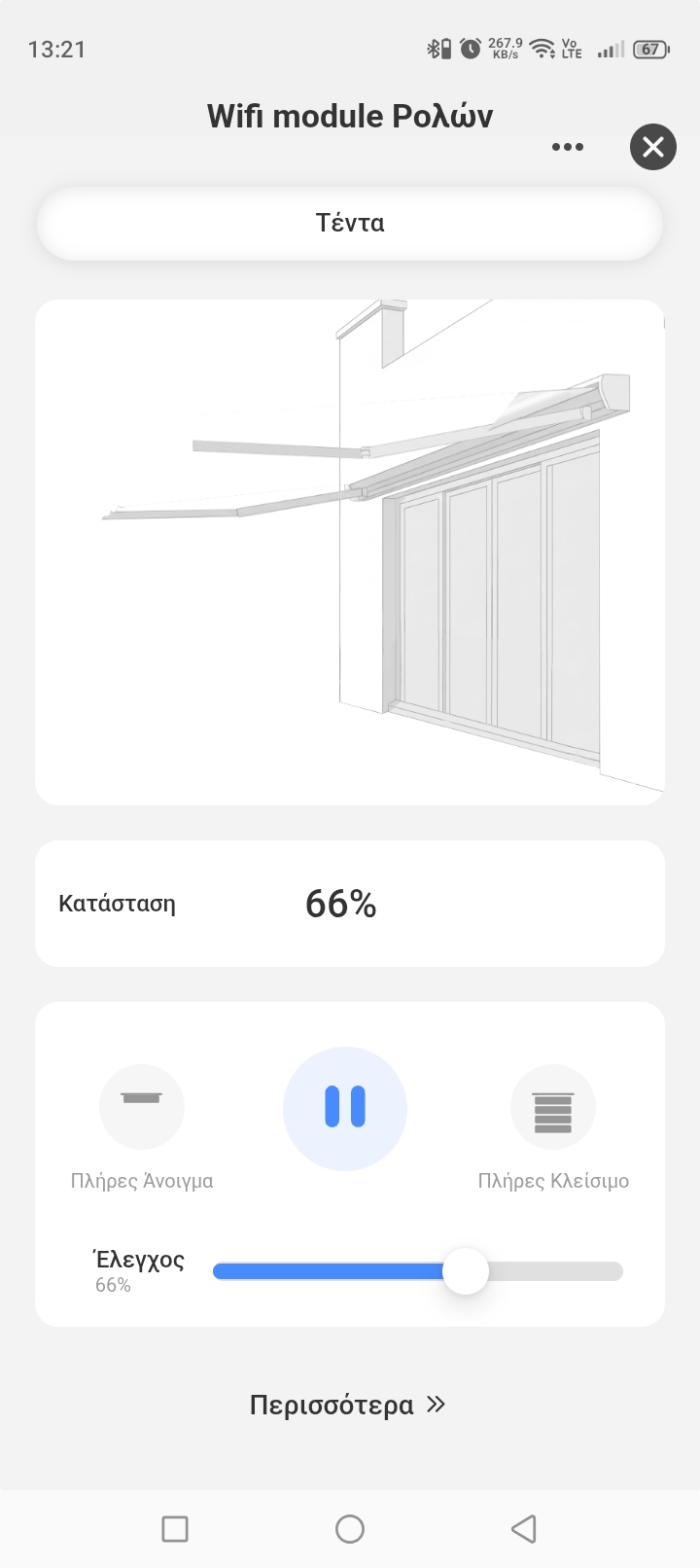

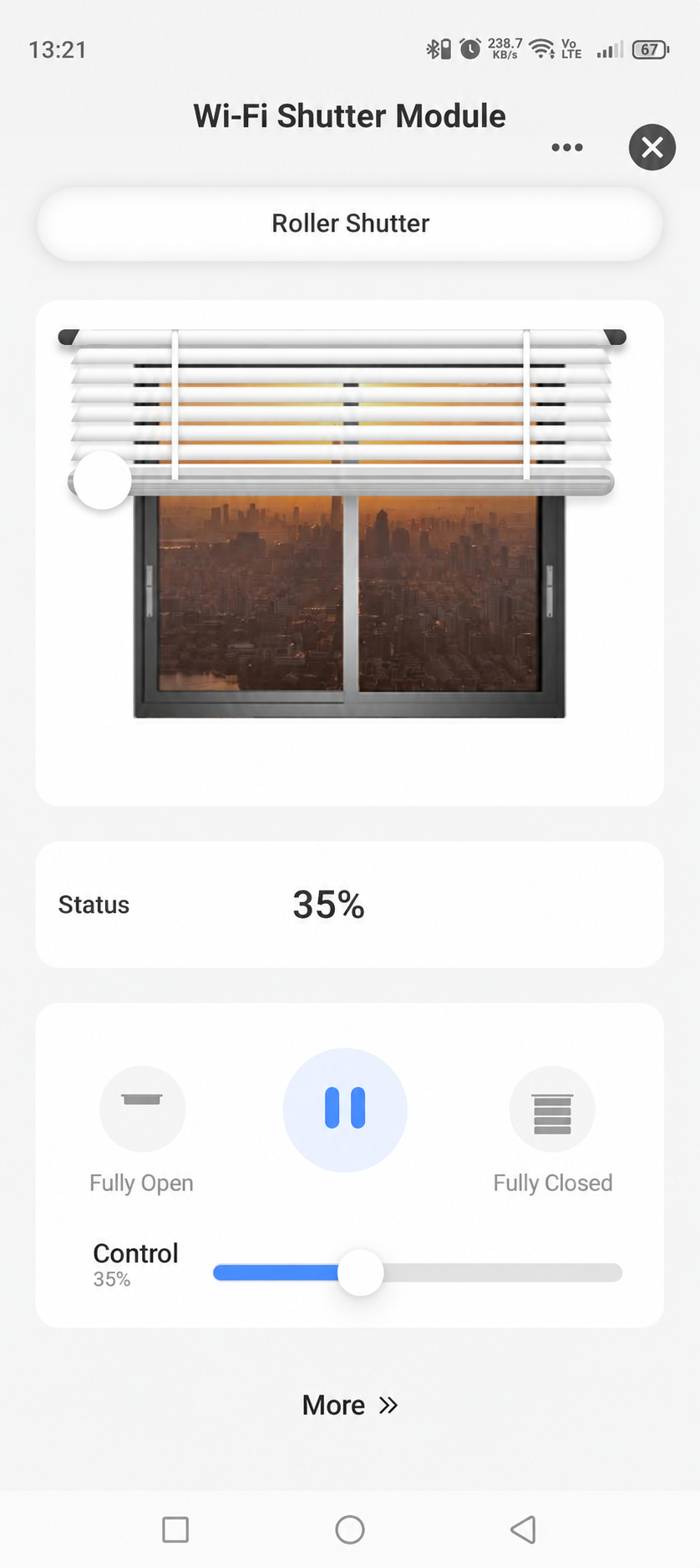

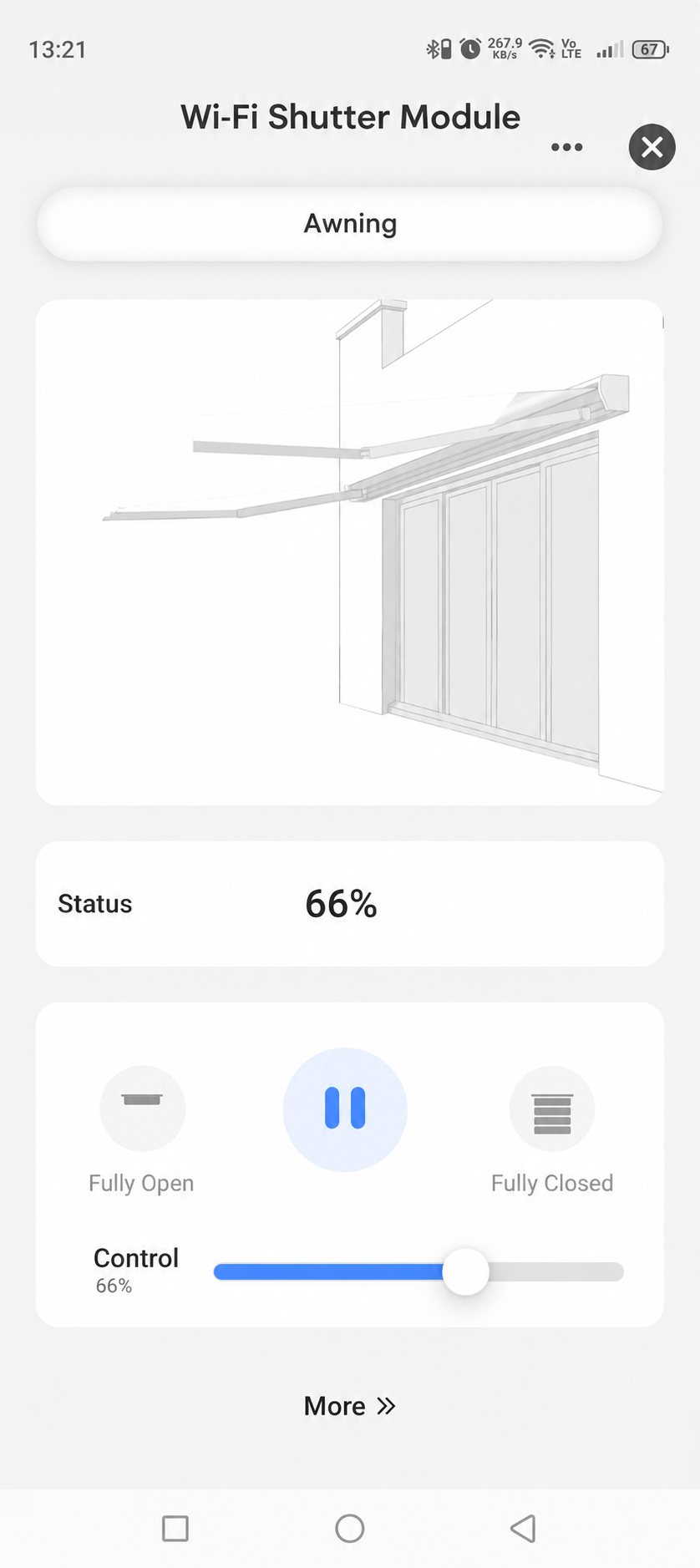

GEYER SMART APP
Shading control in one clear view.
Open, stop or close the shading system, select the desired position and create schedules and smart scenes from your phone.
APPLICATIONS
Smart shading for every space.
01
LIVING ROOM
Adjust roller shutters to manage daylight, privacy and comfort throughout the day.
02
TERRACE / BALCONY
Operate a motorized awning remotely and create time-based routines.
03
BEDROOM
Set blinds or shutters to open and close according to your daily schedule.
04
SHOP / HOSPITALITY
Automate exterior shading according to operating hours and sunrise and sunset times.
Motor compatibility, required protection and wiring must be assessed by a qualified electrician, who performs installation with the power supply isolated.
TECHNICAL SPECIFICATIONS
Designed for motorized shading control.
A Wi-Fi shutter module with local-control inputs, position calibration and installation behind the existing wall switch.
CEREDRoHS2 years
Input voltage100–240 VAC, 50–60 Hz
Maximum current1.7 A
Supported systemsMotorized roller shutters · blinds · awnings · curtains
Position indication0–100% after calibration
Local controlTraditional rocker switches or momentary push-buttons via S1 and S2
Neutral conductorRequired
Wi-FiIEEE 802.11 b/g/n, 2.4 GHz
Communication rangeUp to 80 m outdoors · 25 m indoors
MountingWall switch box, recommended depth 5–6 cm
Dimensions39 × 39 × 18.5 mm
Ingress protectionIP22
Operating temperature−20 °C to +55 °C
AutomationsCalibration · weekly schedule · sunrise/sunset
Shared usersUp to 20
NotificationsPush notifications
Warranty2 years
ComplianceCE · RED 2014/53/EU · LVD 2014/35/EU · EMC 2014/30/EU · RoHS
INSTALLATION & PAIRING
Three essential steps.
01
Installation
Have the module connected to the motor and the selected wall control by a qualified electrician, with the power supply isolated.
02
App
Download GEYER Smart from the App Store or Google Play and connect the phone to a 2.4 GHz Wi-Fi network.
03
Pairing
Press and hold the pairing button for about 10 s until the indicator light flashes rapidly, then add GS-SHUTTER in the app.
!
ELECTRICAL SAFETYMotor suitability, protection, conductor selection and wiring must be assessed and completed by a qualified electrician. Isolate the power supply before installation.

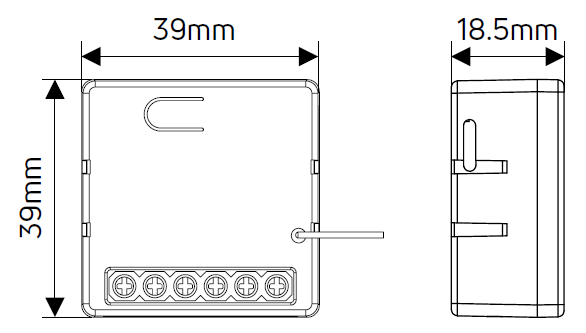

WIRING & DIMENSIONS
Motor outputs with local-control inputs.

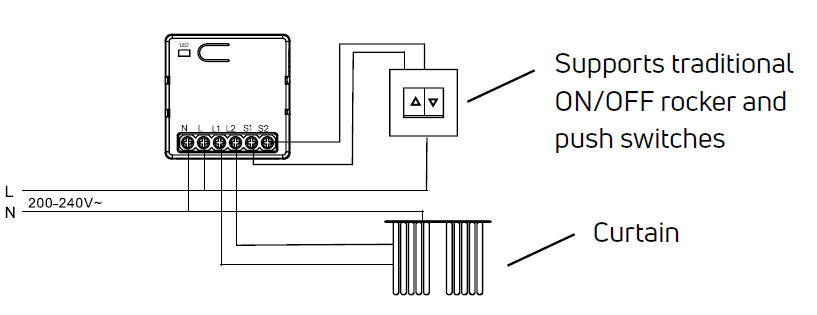

Connect supply N and L, the motor direction outputs L1 and L2, and the selected local controls to S1 and S2 according to the wiring diagram. A neutral conductor is required.
FREQUENTLY ASKED QUESTIONS
The essential answers.
Which shading systems can GS-SHUTTER control?+
It is intended for compatible motorized roller shutters, blinds, awnings and curtains with separate forward and reverse motor connections.
Can I select an intermediate position?+
Yes. After position calibration, the GEYER Smart app can display and set the opening percentage from 0% to 100%.
Can the existing wall control be retained?+
Yes. Compatible traditional rocker switches or momentary push-buttons can be connected to S1 and S2.
Does it require a neutral conductor?+
Yes. A neutral conductor is required for installation.
Does it connect to 5 GHz Wi-Fi?+
No. GS-SHUTTER connects exclusively to a 2.4 GHz Wi-Fi network.
Who should install GS-SHUTTER?+
Installation, motor connection and electrical wiring must be performed by a qualified electrician.
