01
CCT colour-temperature control
Adjust the balance between the warm-white (WW) and cool-white (CW) channels on a compatible CCT LED strip.
GEYER SMART · GS-LSC-CCT · CCT LED CONTROL
The right white light.At every moment.

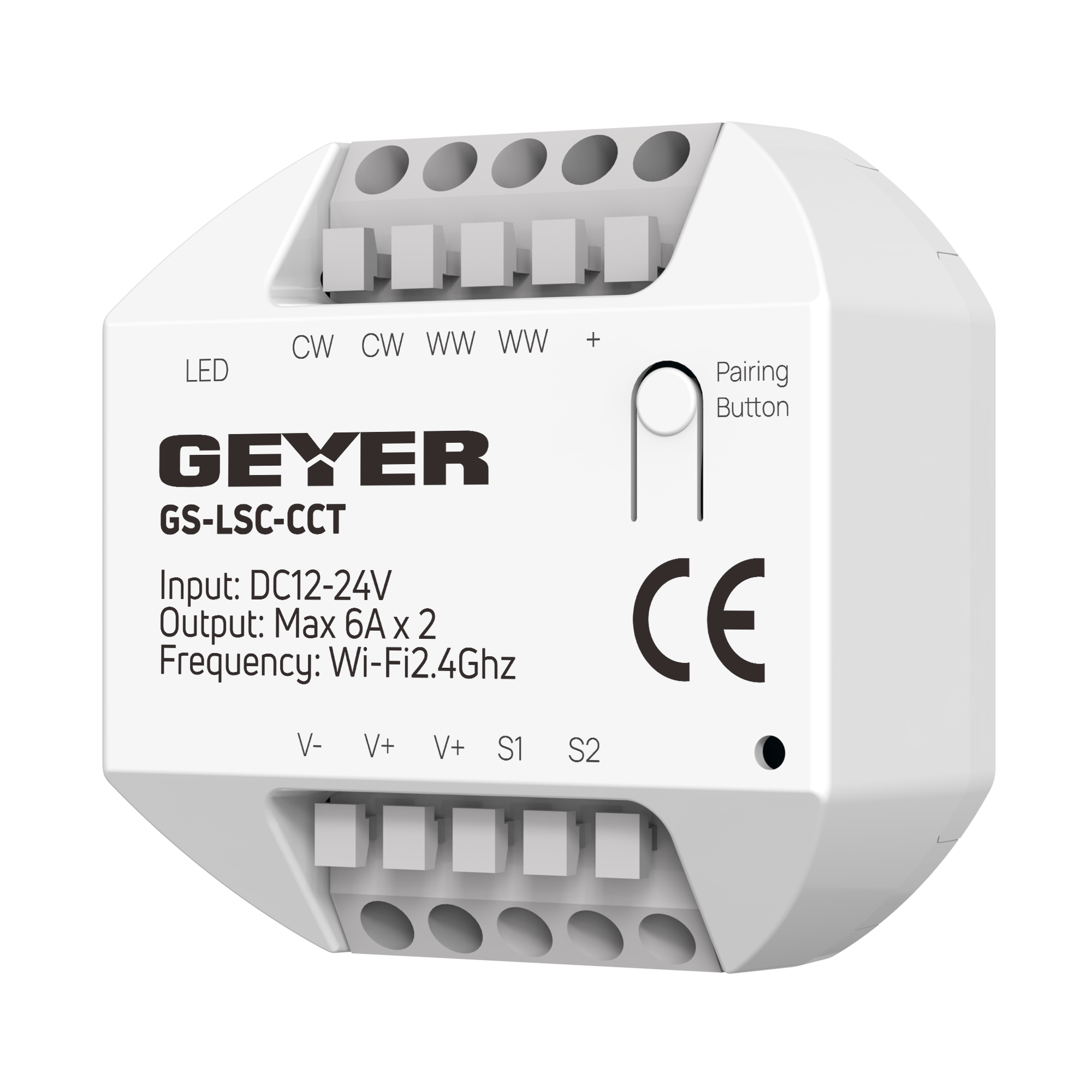

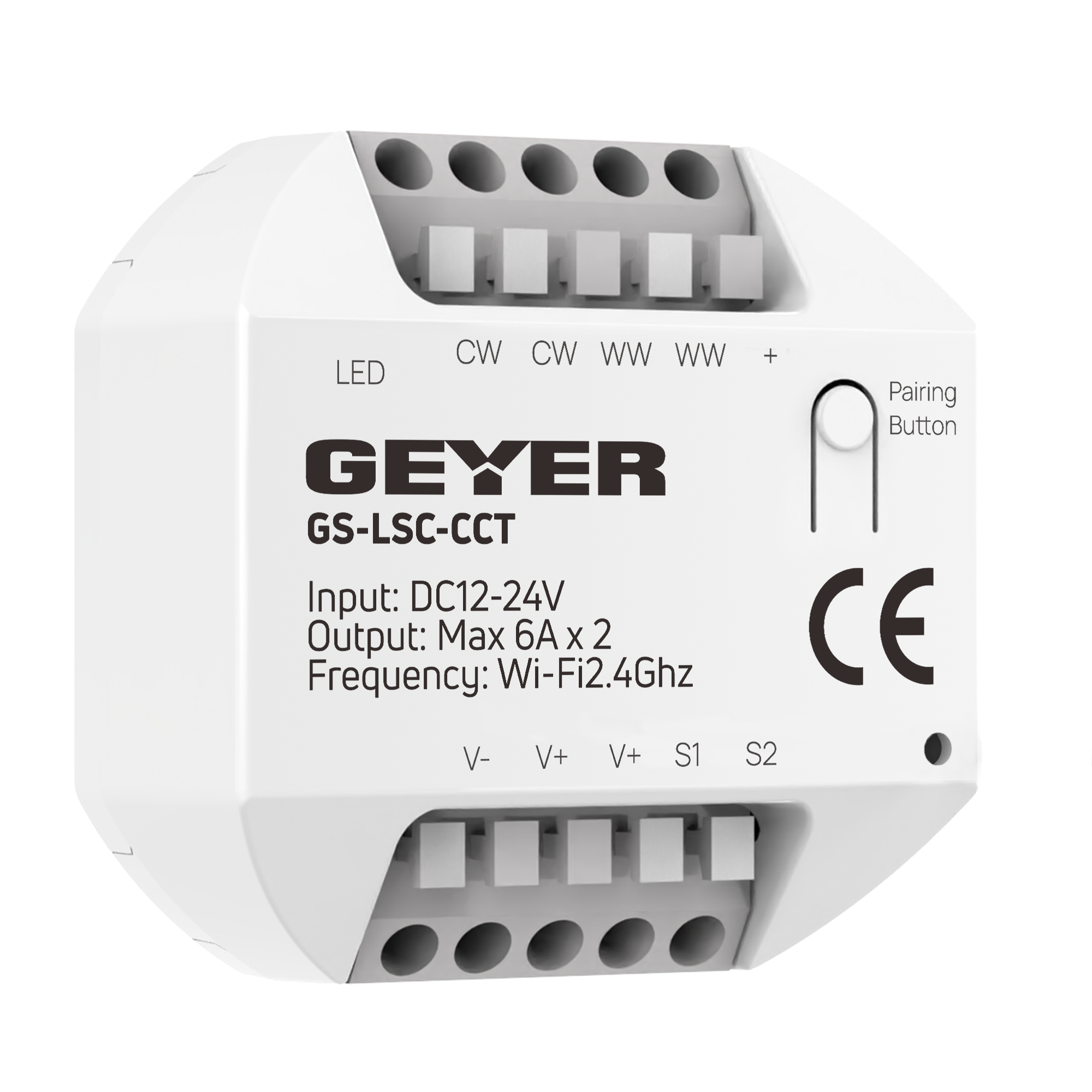

A Wi-Fi controller for constant-voltage CCT or single-colour LED strips, with brightness, CCT colour-temperature and scene control through GEYER Smart.
CCT / 2-channelTwo operating modes
12–24 V DCConstant-voltage LED
2 × 6 AMaximum output
CCT controlBrightness & white tone
Discrete module52 × 52 × 23 mm
CONNECTED ECOSYSTEM
Amazon Alexa
Google Home
Tuya Smart
Smart LifeCOLOUR TEMPERATURE · BRIGHTNESS · SCENES
Lighting that follows the rhythm of the space.
Choose warm or cool white, adjust brightness and create lighting scenes from one versatile controller.
02
Smooth PWM dimming
Regulate brightness with constant-voltage PWM dimming at 1000 Hz.
03
Two operating modes
Use CCT mode or control two compatible single-colour LED loads independently.
04
App, voice & wired control
Control through GEYER Smart, Alexa or Google Home. S1 and S2 accept momentary push buttons with voltage-free contacts.
VERSATILE CONTROL · FLEXIBLE LIGHT
One module for brightness, CCT colour temperature and two-channel dimming.

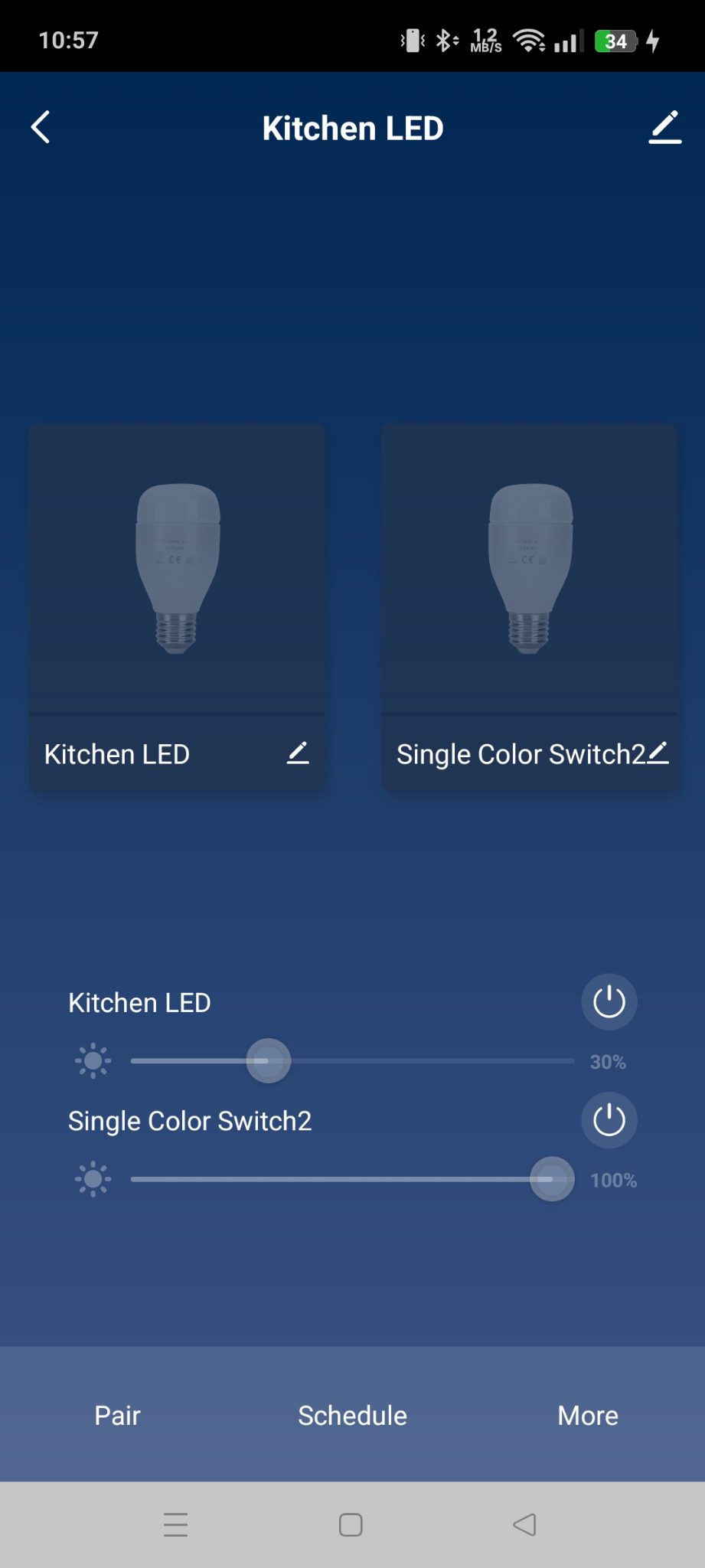

GEYER SMART APP
Your lighting atmosphere in one clear view.

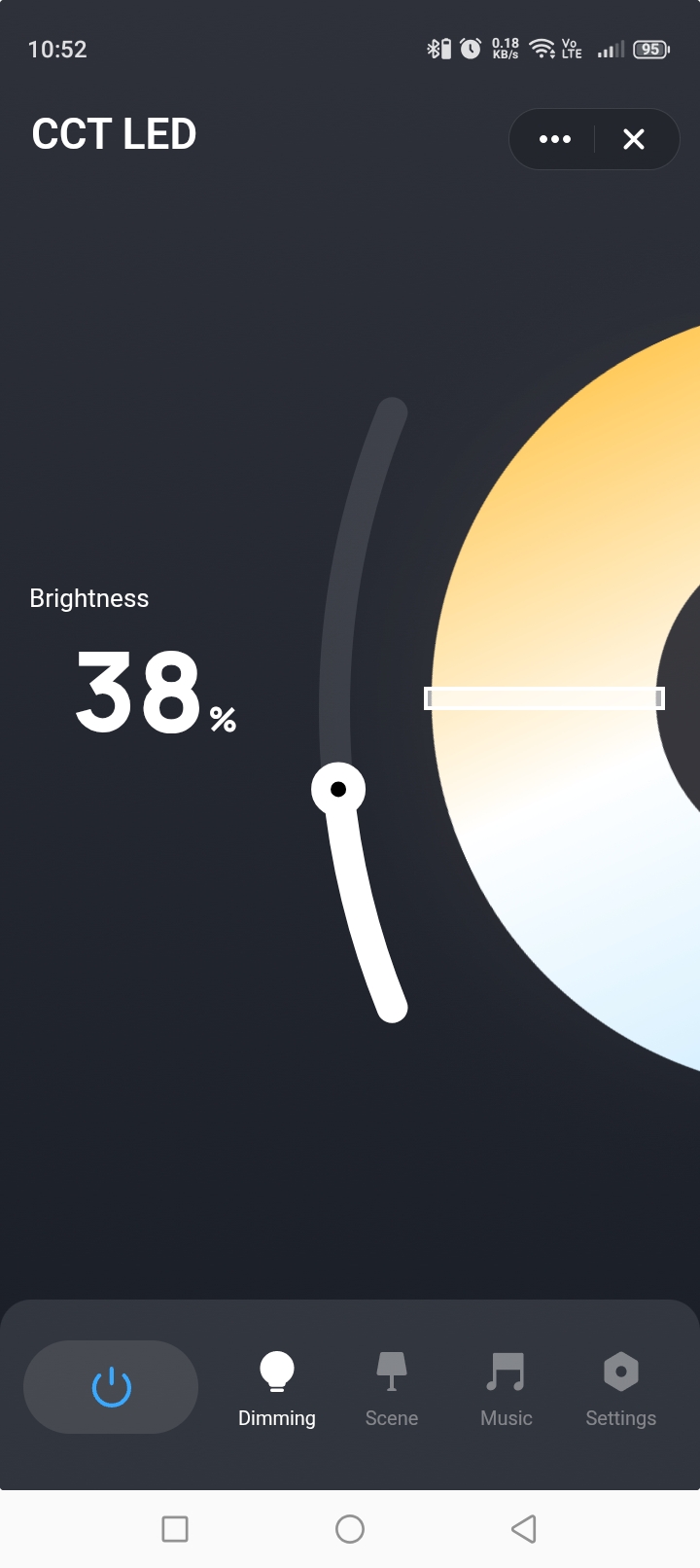

Switch the connected light, adjust brightness and CCT colour temperature, select the operating mode and create scenes from the GEYER Smart app.
APPLICATIONS
White light that adapts to every setting.
01
LIVING ROOM
Move from bright functional light to a warmer, softer atmosphere.
02
KITCHEN
Use clear neutral-white task lighting for preparation and softer light later in the day.
03
HOME OFFICE
Choose clean cool-white lighting for focused work and adjust brightness as needed.
04
RESTAURANTS & HOSPITALITY SPACES
Set consistent scenes for breakfast, dinner, cleaning and service hours.
Use only compatible constant-voltage 12–24 V DC LED strips or fixtures. A suitably trained installer must connect the 12–24 V DC circuit. The 100–240 V AC side of the SELV power supply must be connected by a licensed electrician.
TECHNICAL SPECIFICATIONS
Two-channel PWM control for CCT and single-colour LED strips.
GS-LSC-CCT operates from a matching 12–24 V DC supply and provides up to 6 A per output channel.
CEREDRoHS2-year warranty
Product modelGS-LSC-CCT
Control modesCCT LED strips · two-channel single-colour LED
Input12–24 V DC
OutputConstant-voltage PWM dimming
Maximum output current2 × 6 A
Maximum output load144 W at 12 V DC · 288 W at 24 V DC
PWM frequency1000 Hz
Local inputsS1 and S2 · momentary push buttons · voltage-free contacts
Wi-Fi2.4 GHz
Control methodGEYER Smart app · voice assistants · momentary push buttons
CCT output assignmentCW = cool white · WW = warm white

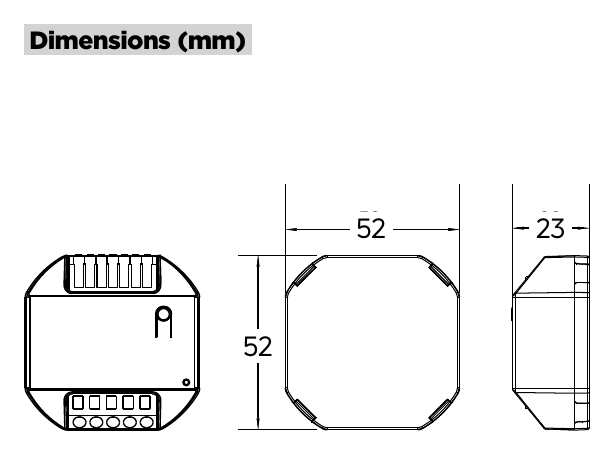

Dimensions52 × 52 × 23 mm
Ingress protectionIP20
Operating temperature−20 °C to +55 °C
Default modeCCT mode
Warranty2 years
ComplianceCE · RED · RoHS
INSTALLATION & PAIRING
Three essential steps.
01
Installation
With power isolated, have a suitably trained installer connect the 12–24 V DC supply and compatible LED strip to the marked terminals.
02
App
Download GEYER Smart and connect the phone to a 2.4 GHz Wi-Fi network.
03
Pairing
On first power-up the indicator LED flashes rapidly. Otherwise, press and hold the pairing button for 10 seconds, then add the device in GEYER Smart.
!
12–24 V DC POWER-SUPPLY INSTALLATIONUse a correctly rated, certified SELV constant-voltage power supply. Verify polarity, output load and secure connections before energising. The 100–240 V AC side of the power supply must be connected by a licensed electrician.

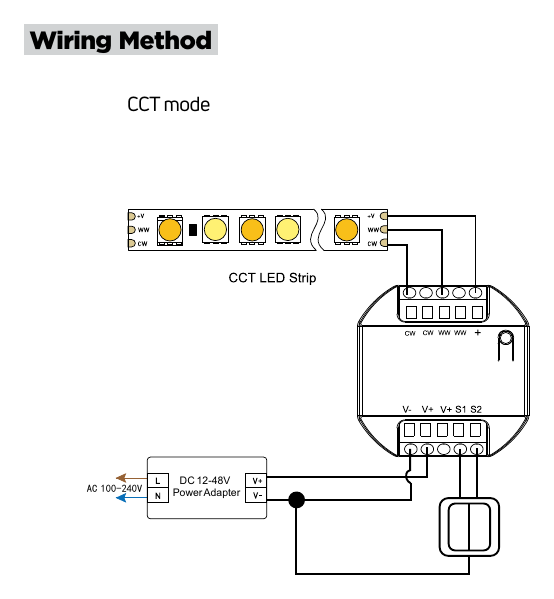

WIRING & DIMENSIONS
Choose CCT or two-channel dimming mode.

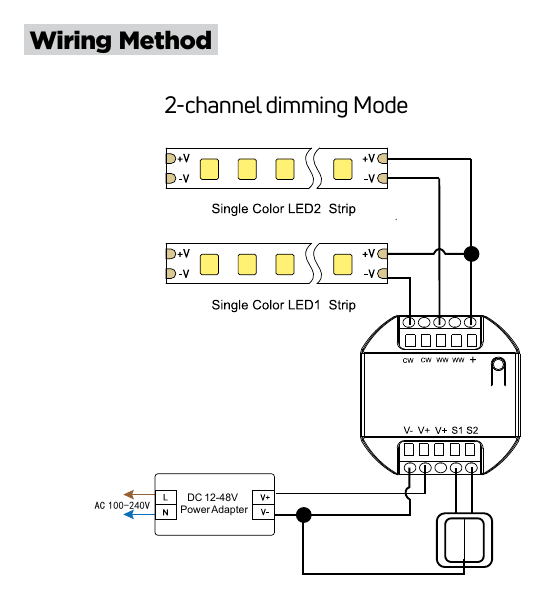

Connect V+ and V− to the matching DC power supply. In CCT mode, CW is the cool-white output and WW is the warm-white output. In two-channel mode, connect the two compatible single-colour loads as shown.
FREQUENTLY ASKED QUESTIONS
The essential answers.
Which LED strips are compatible?+
Constant-voltage 12–24 V DC CCT strips and compatible single-colour LED strips are supported.
Can it control RGB strips?+
No. GS-LSC-CCT is intended for CCT and single-colour LED strips, not RGB colour control.
How much load can it control?+
Up to 6 A per output channel, with a maximum total load of 144 W at 12 V DC or 288 W at 24 V DC.
How do I change operating mode?+
Choose the mode in the app or press the pairing button four times within one second. CCT is the default mode.
Does it connect to 5 GHz Wi-Fi?+
No. It connects to a 2.4 GHz Wi-Fi network.
Can I retain wall controls?+
Yes. Compatible wired switches can be connected to the S1 and S2 inputs.
VIDEO
Product videos.
▶
Video content coming soon
TESTIMONIALS
Everyday experiences with GS-LSC-CCT.
Flexible white-light control for homes and professional spaces.
01“
I use it for the LED strip in the living room. During the day I choose a cooler white and in the evening I lower the brightness and move to a warmer tone.
Nikos P.Homeowner
02“
The kitchen worktop now has the right light for preparation, while later we switch to a softer scene from the app.
Maria K.Homeowner
03“
We created different white-light scenes for breakfast, dinner and cleaning without changing the LED installation.
Giorgos M.Restaurant owner
GS-LSC-CCT DOCUMENTATION
All available product documents in one place.
PDF
DatasheetTechnical specifications
COMING SOON
PDF
PDF
Quick GuideEssential installation and pairing steps
COMING SOON
ManualDetailed use and settings
DOWNLOAD ↓
PDF
Product SheetProduct overview and applications
COMING SOON
