01
Photoelectric detection
Detects smoke using a photoelectric sensing principle designed for stable operation and reduced nuisance alarms.
GEYER SMART · GS-122LH · WI-FI SMOKE ALARM
Early smoke detection,wherever you are.
Photoelectric Wi-Fi smoke alarm with a powerful local alarm and notifications through the GEYER Smart app. Battery-powered for straightforward installation in suitable indoor spaces.
≥85 dB / 3 mLocal alarm
Up to 3 yearsBattery life
Up to 10 yearsService life
Smoke-alarm notificationsGEYER Smart
Product codeGS-122LH
CONNECTED ECOSYSTEM
Amazon Alexa
Google Home
Tuya Smart
Smart LifeDETECTION · LOCAL ALARM · NOTIFICATIONS
Local warning and remote notifications in one device.
The photoelectric sensor, built-in siren and GEYER Smart connection provide clear information about smoke-alarm events and device status.
02
Powerful local alarm
The built-in sounder produces at least 85 dB at 3 metres to warn people inside the space.
03
Remote notifications
Receive smoke-alarm, fault and battery-status notifications through the GEYER Smart app when the device is online.
04
TEST / HUSH control
Run the weekly test locally and temporarily silence a nuisance alarm for approximately 9 minutes when conditions permit.
BATTERY POWER · WI-FI · EVENT HISTORY
Essential smoke-alarm information on your phone.
GEYER SMART APP
Status and notifications wherever you are.

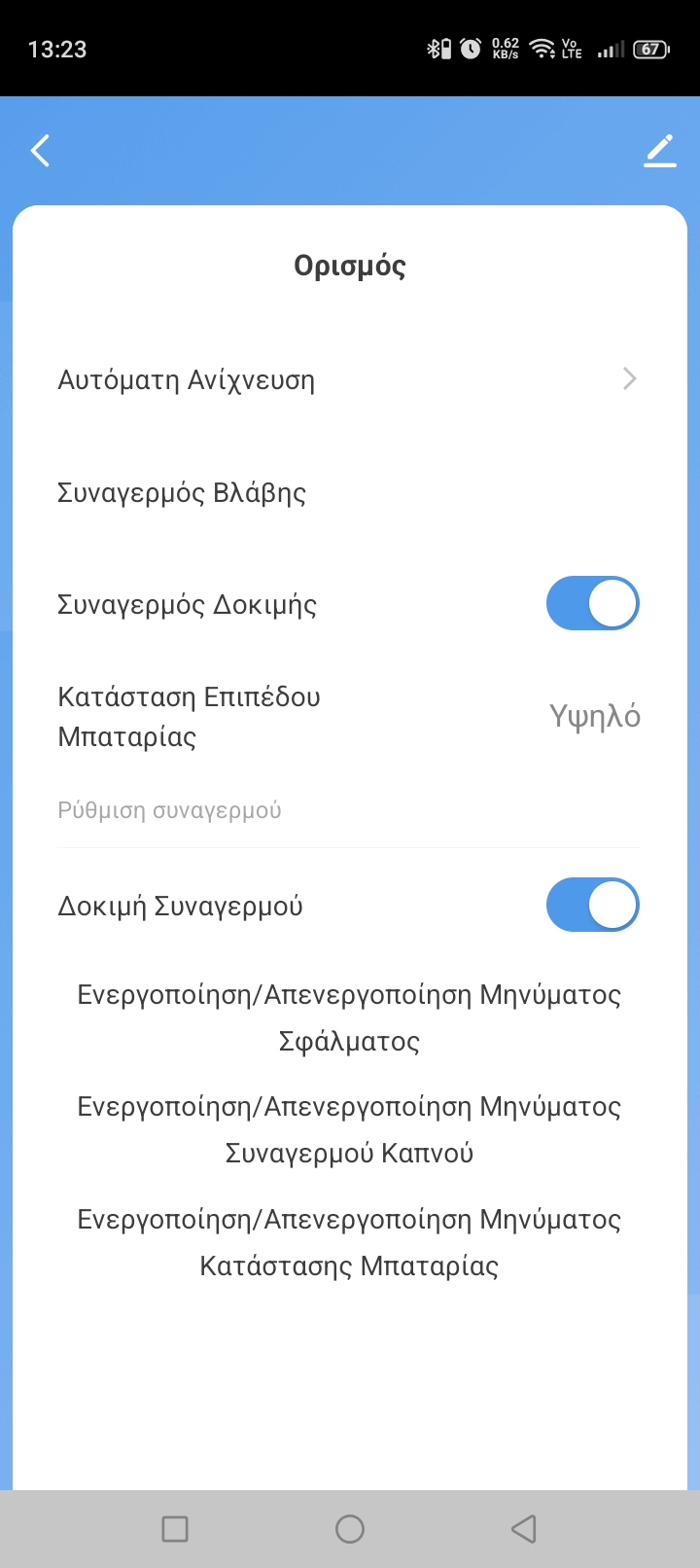

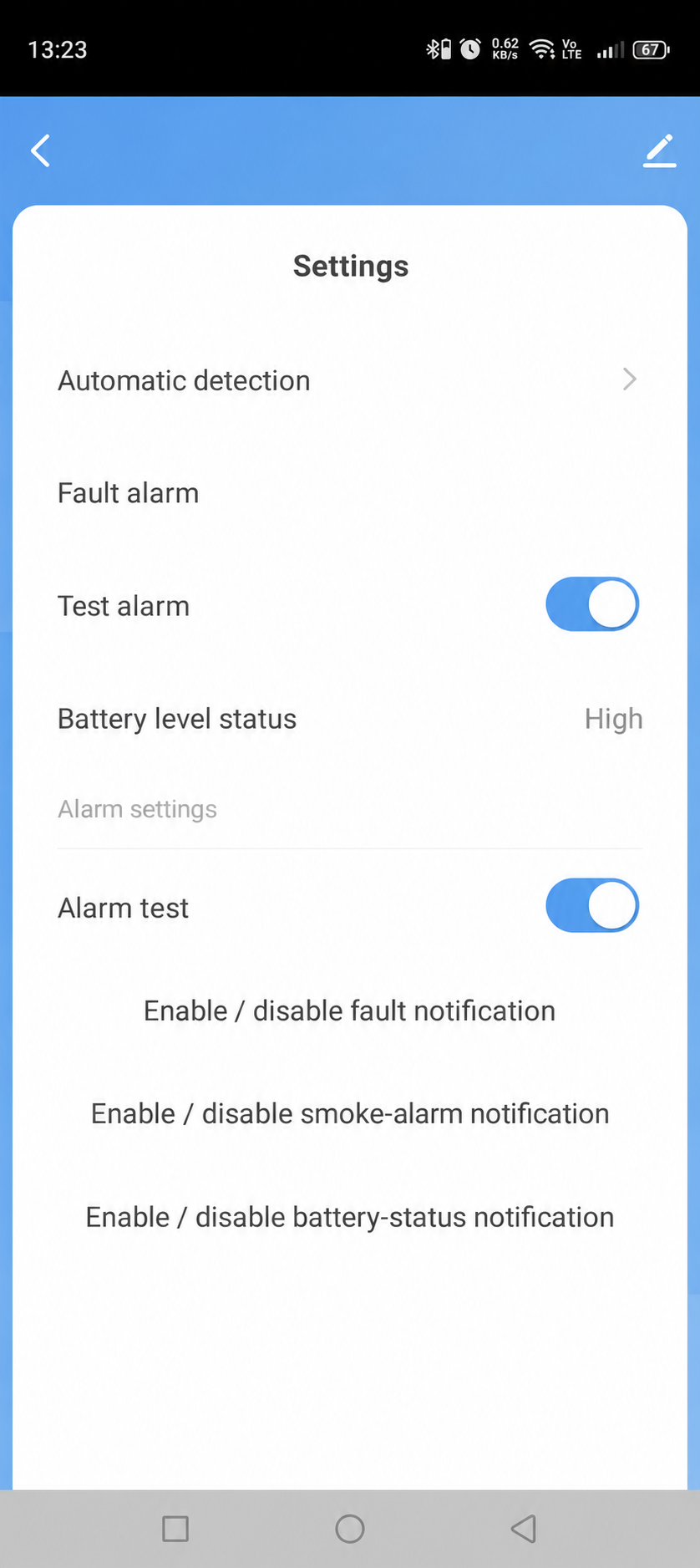

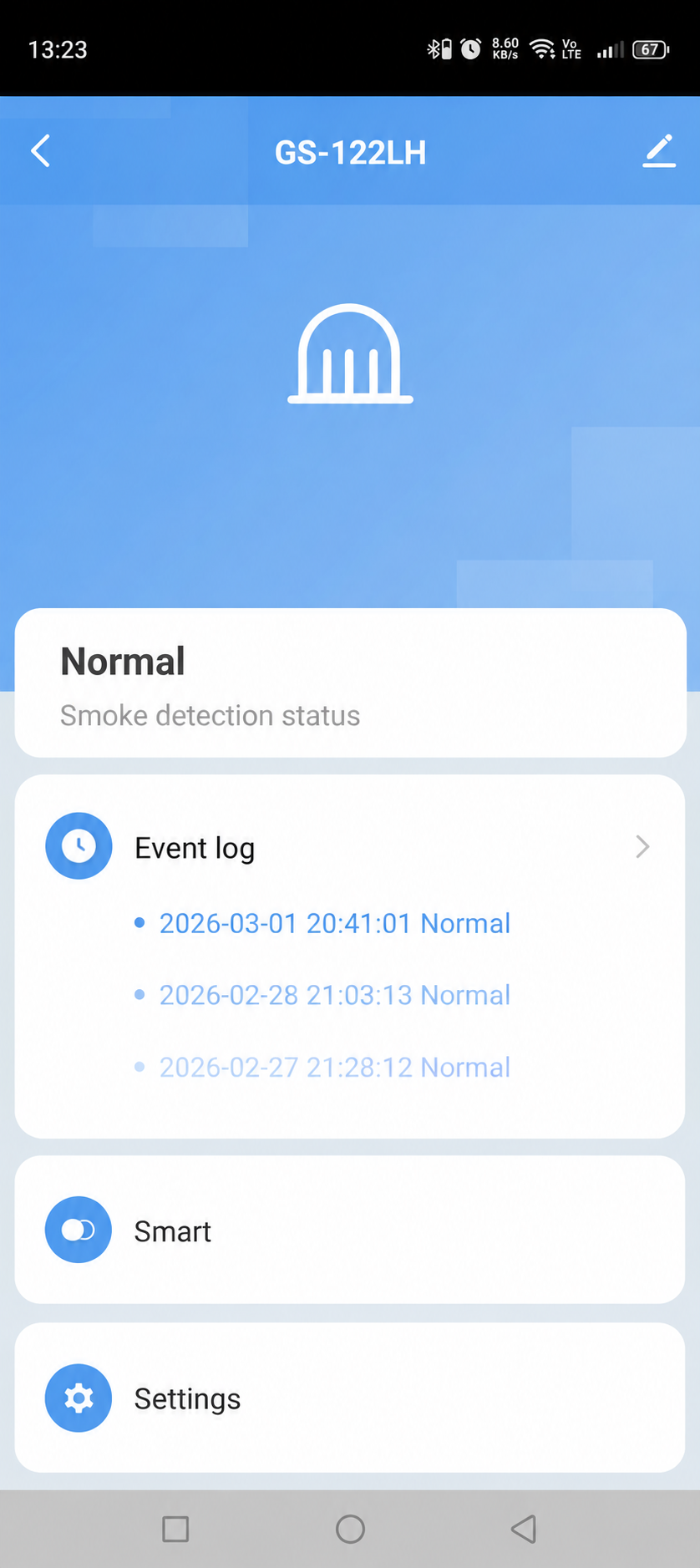

Check the detector status, review alarm and operation history, receive push notifications and monitor the battery indication through the GEYER Smart app.
Push notifications require the detector and phone to have working Wi-Fi and Internet access, cloud services to be available, and phone notifications to be enabled. The local audible alarm operates independently.
RECOMMENDED USES
An additional layer of awareness for important spaces.
01
HOME
Add local smoke detection and connected status monitoring to suitable living and sleeping areas.
02
AIRBNB & HOSPITALITY
Monitor the status of compatible detectors in guest properties through the app.
03
REMOTE NOTIFICATIONS
Receive a notification on your phone when the connected detector reports an event.
04
SECOND HOME
Monitor the detector’s status when the property is unoccupied.
A smoke alarm does not prevent fires and does not replace an approved fire-safety plan. Installation location, quantity and maintenance must follow the manual and applicable requirements.
TECHNICAL SPECIFICATIONS
Designed for dependable smoke detection and clear warning.
Battery-powered photoelectric smoke alarm with Wi-Fi connectivity, local TEST / HUSH control and app notifications.
CERoHS2-year warranty
Product codeGS-122LH
Detection principlePhotoelectric smoke detection
Power supply3 × LR6 AA alkaline batteries
Alarm sound level≥85 dB at 3 m
Battery lifeUp to 3 years
Service lifeUp to 10 years
Wi-Fi2.4 GHz
Operating temperature−10 °C to +50 °C
Operating humidity≤95% RH, non-condensing
Alarm current≤120 mA
Quiescent current≤5 μA
Low-battery threshold3.3 V
Shared accessUp to 20 users
App historyAlarm and operation history
App indicationsAlarm status · battery level
Local functionsTEST · HUSH · alarm memory
DimensionsØ85 × 47 mm
Warranty2 years
ComplianceCE · RoHS
INSTALLATION & CONNECTION
Install, connect and test in four steps.
01
Choose the location
Install on a suitable ceiling location, following the distances and exclusions in the user manual.
02
Secure the mounting plate
Fix the mounting plate with the supplied screws and wall plugs, then insert three LR6 AA alkaline batteries with the correct polarity.
03
Add to GEYER Smart
Connect the phone to 2.4 GHz Wi-Fi, enable Bluetooth and location, press TEST twice and complete pairing while the green LED flashes rapidly.
04
Fit and test
Rotate the detector clockwise into the plate, then hold TEST for about 3 seconds and confirm the red LED and audible alarm operate.
!
IMPORTANT SAFETY INFORMATIONTest the alarm weekly. Keep it away from bathrooms, cooking fumes, strong airflow, dust and fluorescent lighting as described in the manual. Never paint, cover or dismantle the detector.

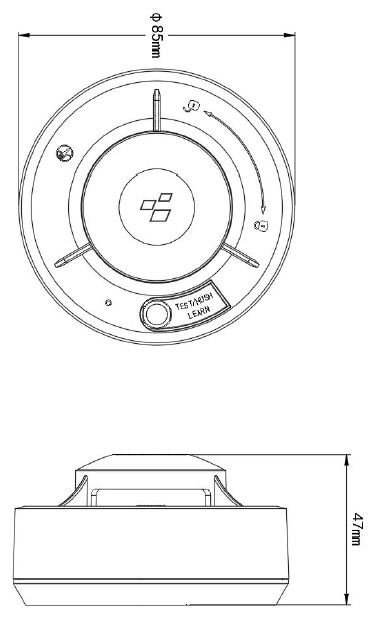

INSTALLATION & DIMENSIONS
A compact ceiling-mounted design.

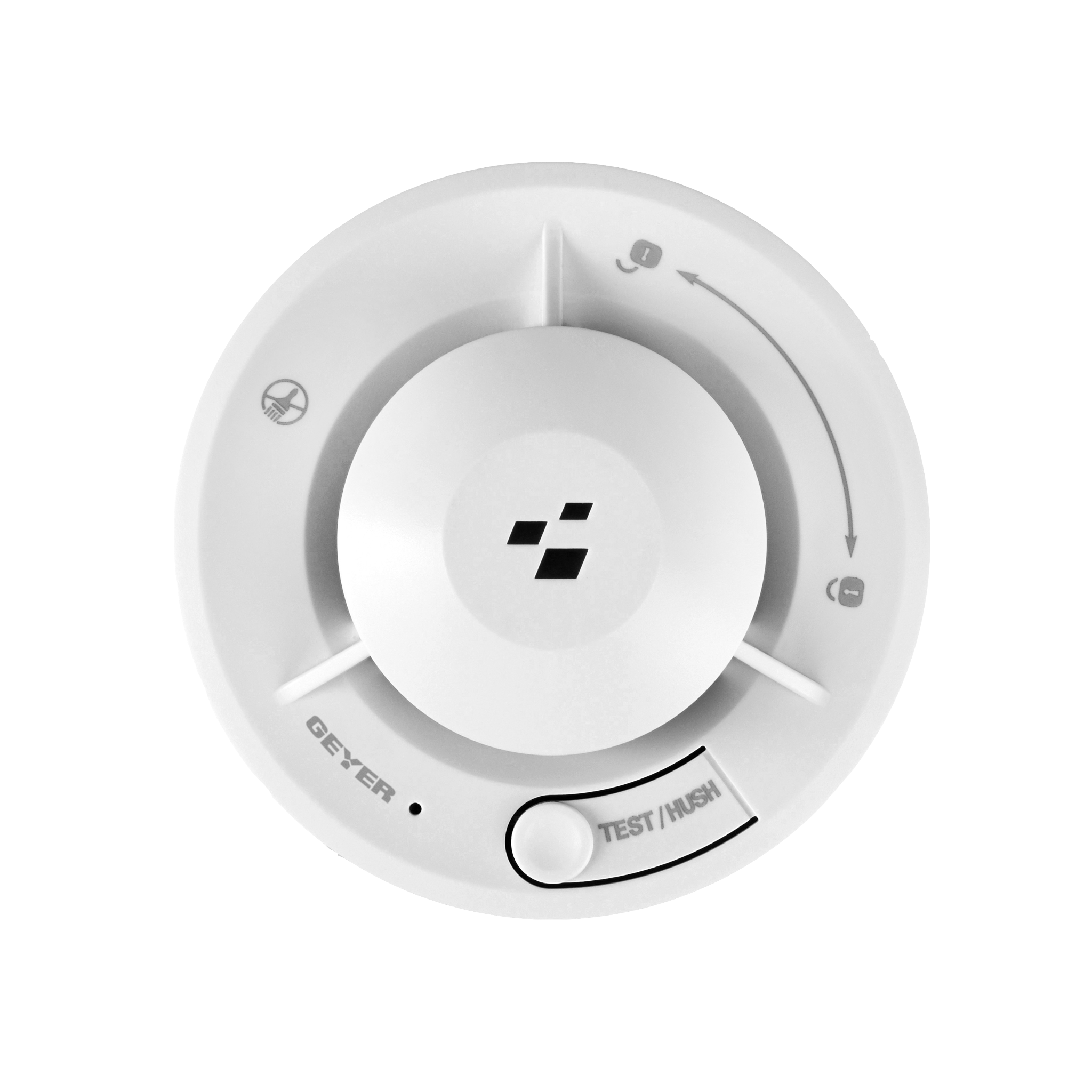

The detector locks onto its mounting plate and provides direct access to the TEST / HUSH button. Open the drawings for a larger view.
FREQUENTLY ASKED QUESTIONS
The essential answers.
How does GS-122LH detect smoke?+
It uses a photoelectric sensing principle. Smoke entering the chamber triggers the local audible and visual alarm.
Does the alarm work without Wi-Fi?+
Yes. Local smoke detection and the built-in siren operate independently. Wi-Fi is required for app status, history and remote notifications.
Which batteries does it use?+
Three LR6 AA alkaline batteries. Replace all batteries together with the specified type and correct polarity.
How often should I test it?+
The user manual requires a weekly test by holding the TEST button for approximately 3 seconds.
What does HUSH mode do?+
During a nuisance alarm, TEST / HUSH can temporarily silence the alarm for about 9 minutes when smoke concentration is not excessive.
How many users can access it?+
The device can be shared with up to 20 users through the app.
Where should it be installed?+
Placement depends on the room and applicable requirements. Follow the user manual, keeping the stated distances from walls, bathrooms, kitchens, lamps and airflow sources.
