GEYER SMART · ER163CT · CURRENT TRANSFORMER

Energy consumption.Measurement without routing the load through the meter.

Smart single-phase Wi-Fi energy meter with an external split-core current transformer for real-time and historical monitoring of consumption and electrical values up to 70 A.

Explore the functions Technical specifications

70 ASingle-phase

Wi-Fi2.4 GHz

1 moduleon DIN rail

GEYER ER163CT energy meter with external split-core current transformer

Energy meteringLive data & history

External current transformerSplit-core measurement

CONNECTED ECOSYSTEM

Amazon Alexa

Google Home

Tuya Smart

Smart Life

ENERGY · LIVE DATA · HISTORY

A clear picture of energy use.

ER163CT measures a single-phase circuit through its external split-core current transformer and sends live values and consumption history to GEYER Smart.

kWh01

Energy metering

View voltage, current, active power and daily, monthly and total energy consumption.

CT02

Split-core current transformer

Measure current around the live conductor without routing the load through the meter.

◷03

History & notifications

Review consumption history and receive push notifications.

I/O04

Remote access & sharing

Check measurements wherever you are and share the device with up to 20 users.

SINGLE-PHASE · 70 A · EXTERNAL CURRENT TRANSFORMER

Energy data from the electrical panel, available on your phone.

Single-phase70 A1 DIN moduleWi-Fi 2.4 GHz

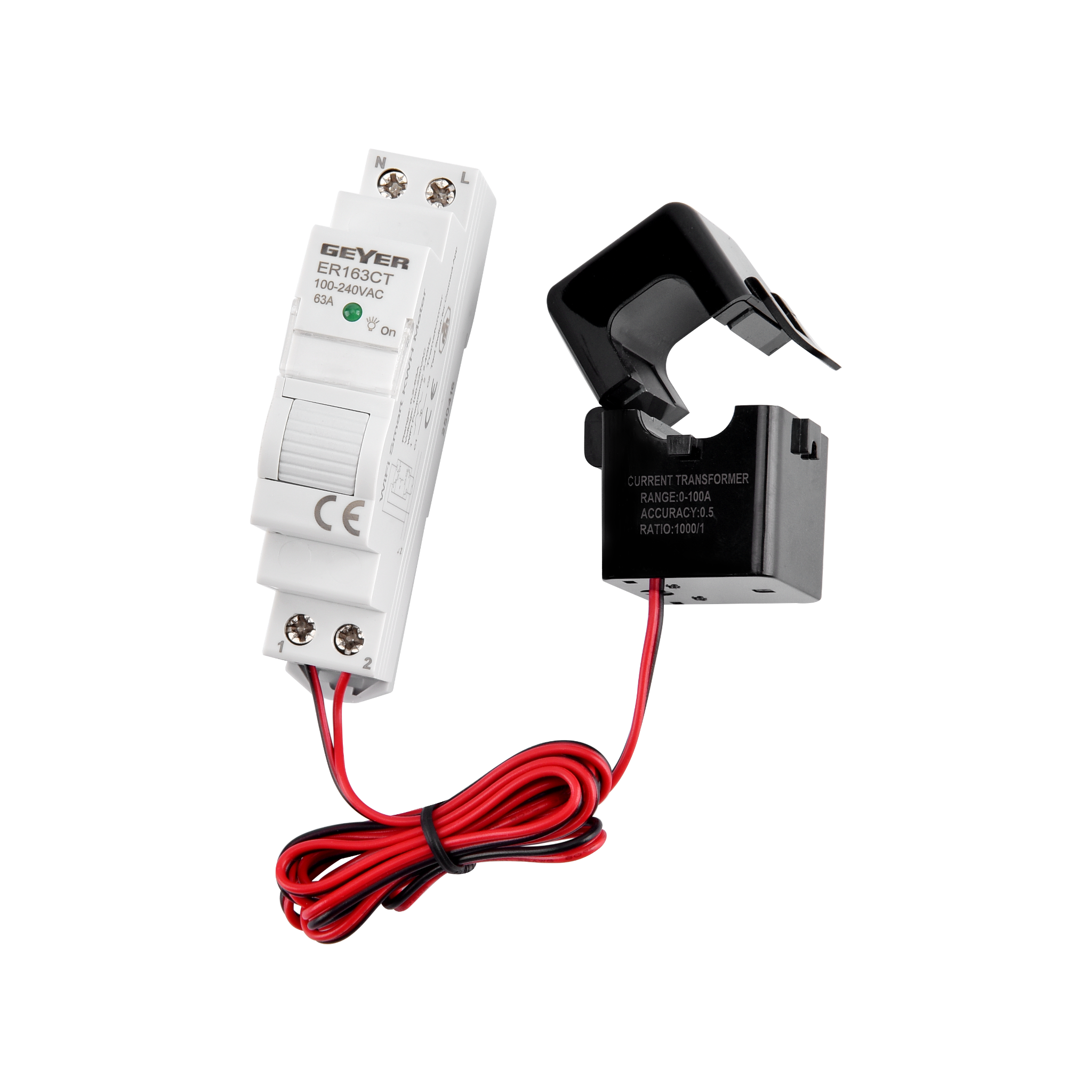

GEYER ER163CT and its external split-core current transformer

GEYER SMART APP

Live values and consumption on your phone.

Monitor voltage, current, active power and energy consumption. Review daily, monthly and total values, consumption history and push notifications.

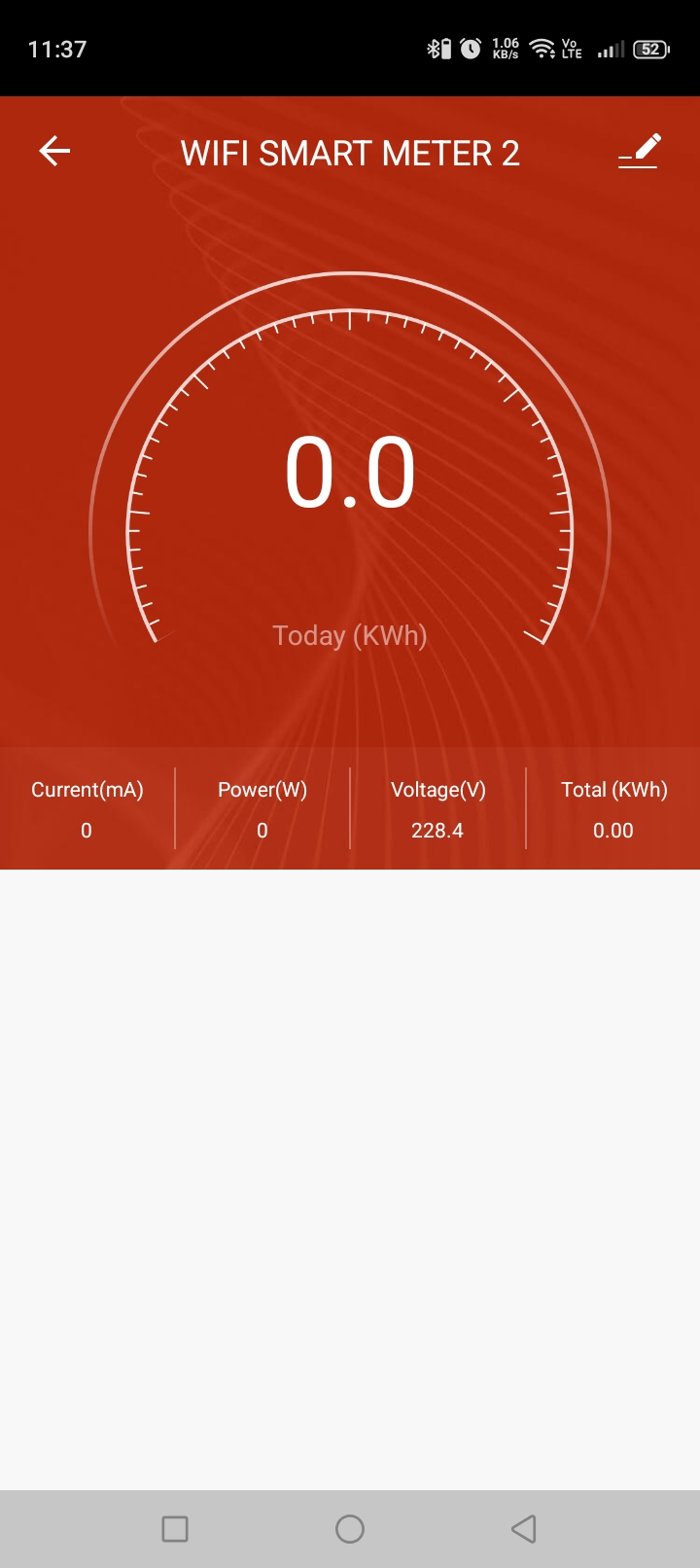

GEYER Smart screen showing ER163CT energy, current, power and voltage measurements — LIVE MEASUREMENTS

ENERGY OVERVIEW

VVoltageACurrentWPowerkWhEnergy

APPLICATIONS

Consumption monitoring for everyday single-phase installations.

HOME

Monitor whole-home consumption or a selected high-consumption circuit.

OFFICE

Track energy use and identify periods of increased demand in a professional space.

HOLIDAY HOME / AIRBNB

Check consumption remotely and keep a historical view while you are away.

LOAD ANALYSIS

Compare voltage, current, power and energy data to better understand a selected load.

The suitability of the installation, protection and conductor cross-section must be assessed by a qualified electrician, who must install and wire the product with the power supply isolated.

TECHNICAL SPECIFICATIONS

Single-phase metering with an external current transformer.

A compact Wi-Fi energy meter for a 35 mm DIN rail, with a one-module width and remote data access.

CEREDRoHS2-year warranty

Input voltage100–240 VAC

Frequency50–60 Hz

Maximum measured current70 A

SystemSingle-phase

Current sensingExternal split-core current transformer

Wi-Fi2.4 GHz

Mounting35 mm DIN rail, 1 module

Dimensions70.5 × 17.5 × 86.5 mm

Operating temperature−10 °C to +60 °C

MeasurementsVoltage, current, active power and daily, monthly and total energy

Consumption historyYes

Shared usersUp to 20

NotificationsPush notifications

Warranty2 years

ComplianceCE · RED 2014/53/EU · LVD · EMC · RoHS

INSTALLATION & PAIRING

Three essential steps.

Installation

With the power supply isolated, mount ER163CT on a 35 mm DIN rail and have N, L and the transformer leads connected by a qualified electrician. Open the split-core current transformer, position it around the live conductor and close it securely.

App

Download GEYER Smart and connect the phone to a 2.4 GHz Wi-Fi network.

Pairing

Press and hold the device button for about 5 seconds until the green indicator LED flashes rapidly, then add ER163CT in the app. A momentary switch at C1/C2 can also initiate pairing.

ELECTRICAL SAFETYInstallation and electrical connection must be performed by a qualified electrician, with the power supply isolated and in accordance with the wiring diagram.

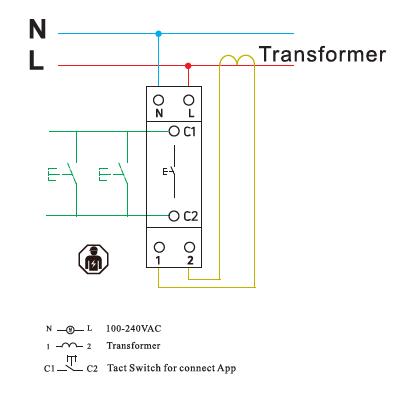

WIRING DIAGRAM

Supply and split-core current transformer.

With the power supply isolated, connect N and L to the supply terminals and the transformer leads to terminals 1 and 2. Open the split-core current transformer, position it around the live conductor and close it securely. C1/C2 are intended for an optional momentary pairing switch.

ER163CT wiring diagram — Installation must be carried out by a qualified electrician.

FREQUENTLY ASKED QUESTIONS

The essential answers.

What does ER163CT measure?+

It displays voltage, current, active power and daily, monthly and total energy consumption in GEYER Smart.

Does it switch the circuit remotely?+

No. ER163CT is intended for energy measurement and does not provide a relay output for remote load switching.

Must the load conductor pass through the meter?+

No. The live conductor passes through the external split-core current transformer.

Does it connect to 5 GHz Wi-Fi?+

No. It connects to a 2.4 GHz Wi-Fi network.

Can the device be shared?+

Yes. It can be shared with up to 20 users.

Who should install ER163CT?+

Installation and electrical connection must be performed by a qualified electrician.

VIDEO

Product videos.

▶

Video content coming soon

TESTIMONIALS

Energy use becomes easier to understand.

Experiences from users monitoring single-phase installations.

01“

The clamp made it possible to add consumption monitoring without routing the whole load through another device. The customer now sees the basic electrical values on their phone.
